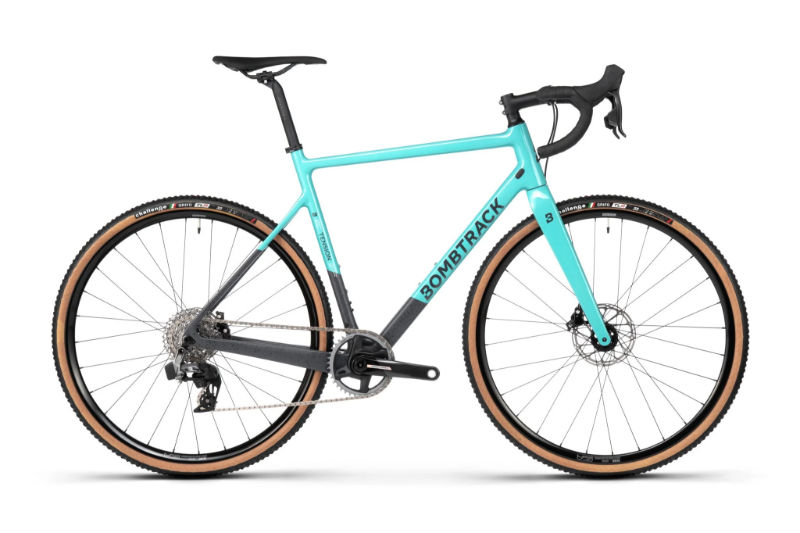

2025 Bombtrack Tension C geometry
Full frame geometry for the 2025 Bombtrack Tension C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 533 | 378 | 75 | 71 | 110 | 521 | 490 | 761 | 64 | 591 | 425 | 1007 | 45 | 73 |
| S | 553 | 376 | 74 | 71.5 | 123 | 535 | 520 | 785 | 64 | 591 | 425 | 1007 | 45 | 70 |
| M | 565 | 378 | 73.5 | 72 | 140 | 545 | 540 | 800 | 64 | 591 | 425 | 1008 | 45 | 66 |
| L | 584 | 382 | 73 | 72 | 160 | 560 | 560 | 818 | 64 | 601 | 425 | 1018 | 45 | 66 |
| XL | 603 | 391 | 73 | 72 | 180 | 575 | 580 | 837 | 64 | 616 | 425 | 1033 | 45 | 66 |
All measurements in millimetres unless marked (°) for angles.
