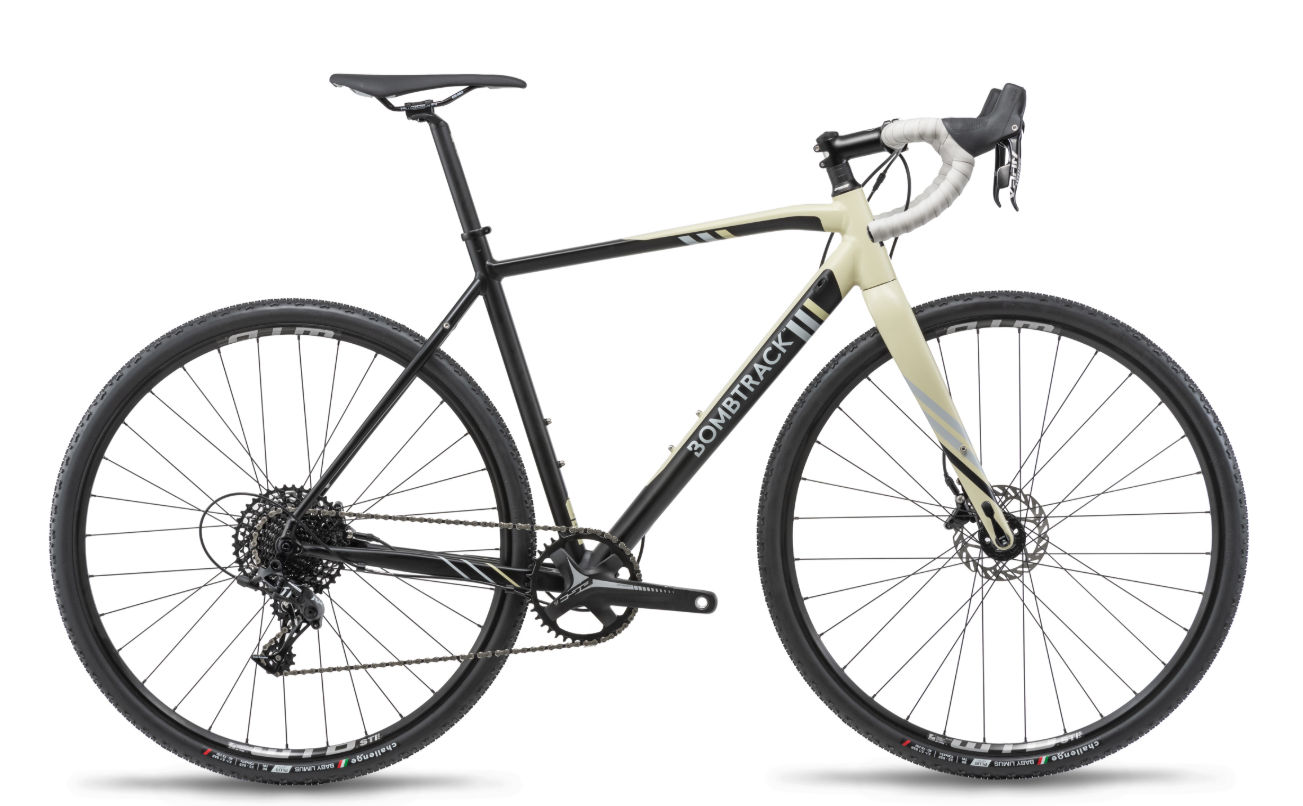

2019 Bombtrack Tension 1 geometry
Full frame geometry for the 2019 Bombtrack Tension 1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 535 | 370 | 73 | 71 | 115 | 534 | 500 | 768 | 65 | 425 | 1000 | 45 | 73 |
| M | 560 | 381 | 73 | 71.5 | 139 | 552 | 530 | 796 | 65 | 425 | 1014 | 45 | 71 |
| L | 584 | 392 | 73 | 72 | 162 | 571 | 560 | 820 | 65 | 425 | 1028 | 45 | 66 |
| XL | 600 | 403 | 73 | 72 | 179 | 586 | 590 | 839 | 65 | 425 | 1044 | 45 | 65 |
All measurements in millimetres unless marked (°) for angles.
