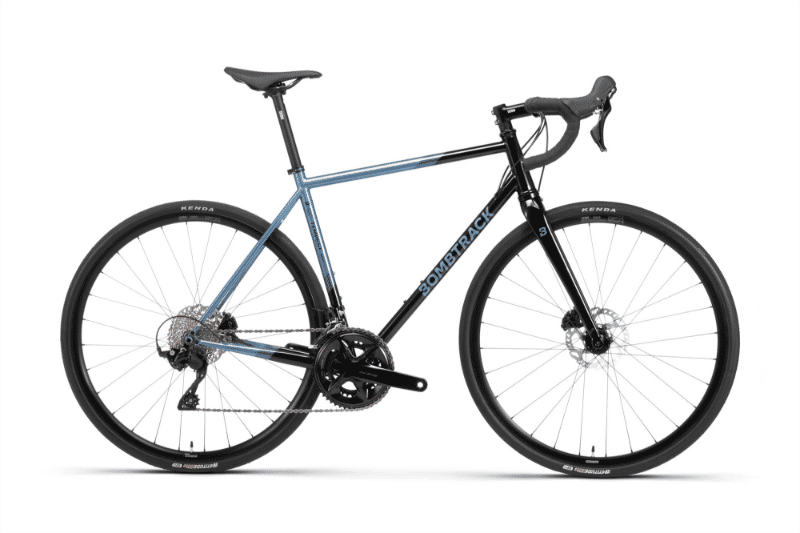

2025 Bombtrack Tempest geometry
Full frame geometry for the 2025 Bombtrack Tempest, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 559 | 371 | 74 | 72 | 130 | 532 | 490 | 789 | 72 | 588 | 410 | 987 | 51 | 59 |
| M | 578 | 383 | 74 | 72 | 150 | 549 | 520 | 813 | 72 | 606 | 410 | 1005 | 51 | 59 |
| L | 595 | 392 | 74 | 72 | 170 | 562 | 550 | 838 | 70 | 620 | 410 | 1020 | 51 | 59 |
All measurements in millimetres unless marked (°) for angles.
