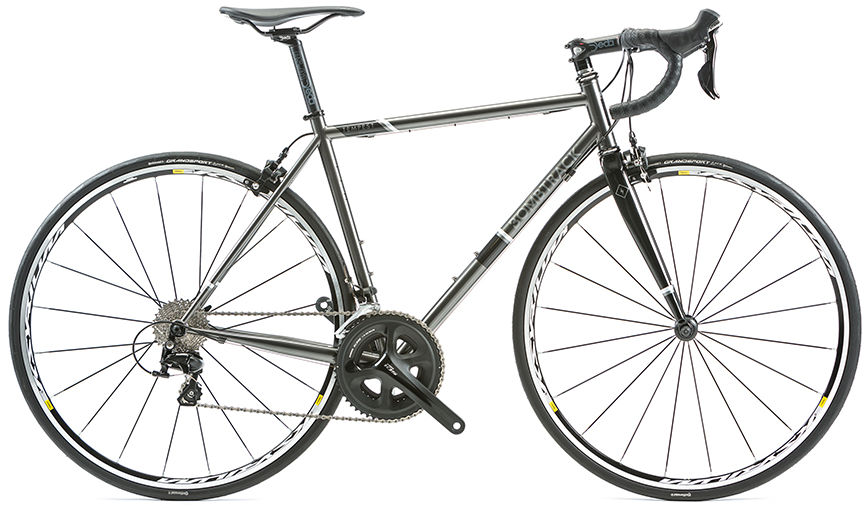

2016 Bombtrack Tempest MK I geometry
Full frame geometry for the 2016 Bombtrack Tempest MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 538 | 378 | 73.5 | 72.5 | 125 | 538 | 490 | 748 | 72 | 407 | 973 | 45 |
| S | 550 | 386 | 73.5 | 73 | 135 | 549 | 510 | 763 | 72 | 410 | 982 | 45 |
| M | 560 | 392 | 73.3 | 73.3 | 145 | 561 | 530 | 778 | 72 | 410 | 989 | 45 |
| L | 579 | 399 | 73 | 73.3 | 165 | 577 | 550 | 796 | 72 | 410 | 1002 | 45 |
All measurements in millimetres unless marked (°) for angles.
