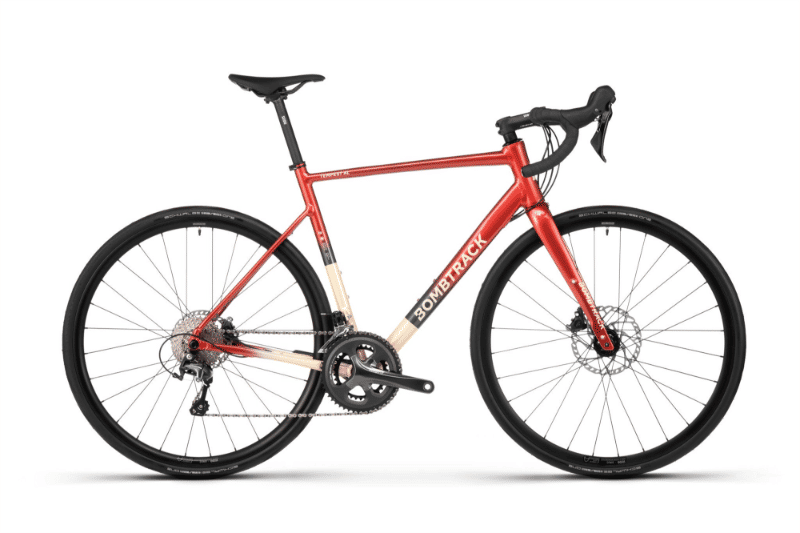

2025 Bombtrack Tempest AL geometry
Full frame geometry for the 2025 Bombtrack Tempest AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 559 | 375 | 73.5 | 71.5 | 145 | 540 | 520 | 788 | 72 | 598 | 418 | 1006 | 53 | 60 |
| M | 578 | 386 | 73.5 | 71.5 | 165 | 557 | 550 | 811 | 72 | 616 | 418 | 1015 | 53 | 60 |
| L | 595 | 398 | 73.5 | 71.5 | 185 | 574 | 580 | 836 | 70 | 633 | 418 | 1042 | 53 | 60 |
All measurements in millimetres unless marked (°) for angles.
