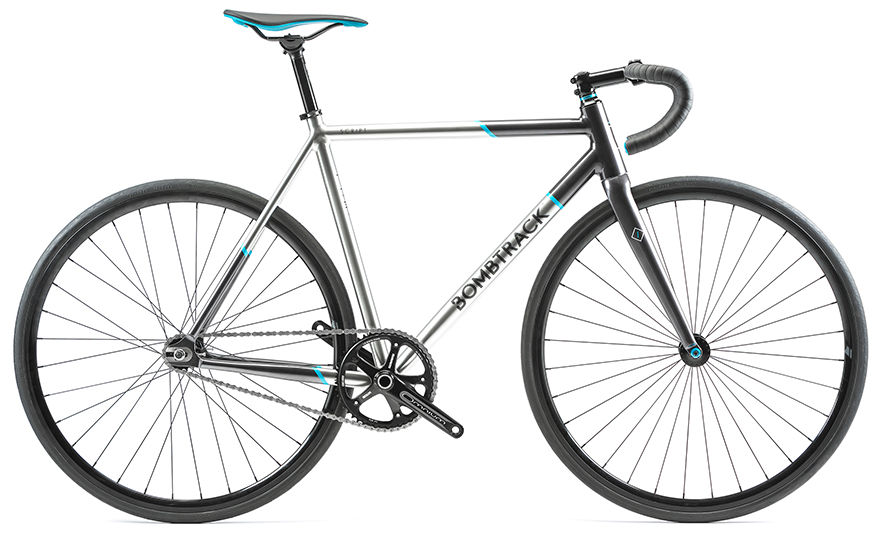

2016 Bombtrack Script geometry
Full frame geometry for the 2016 Bombtrack Script, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 502 | 389 | 75 | 72.5 | 115 | 519 | 520 | 762 | 54 | 397 | 971 | 45 |
| M | 532 | 399 | 74.5 | 72.8 | 145 | 547 | 540 | 786 | 54 | 397 | 987 | 45 |
| L | 566 | 414 | 74 | 73 | 180 | 576 | 570 | 816 | 54 | 397 | 1011 | 45 |
All measurements in millimetres unless marked (°) for angles.
