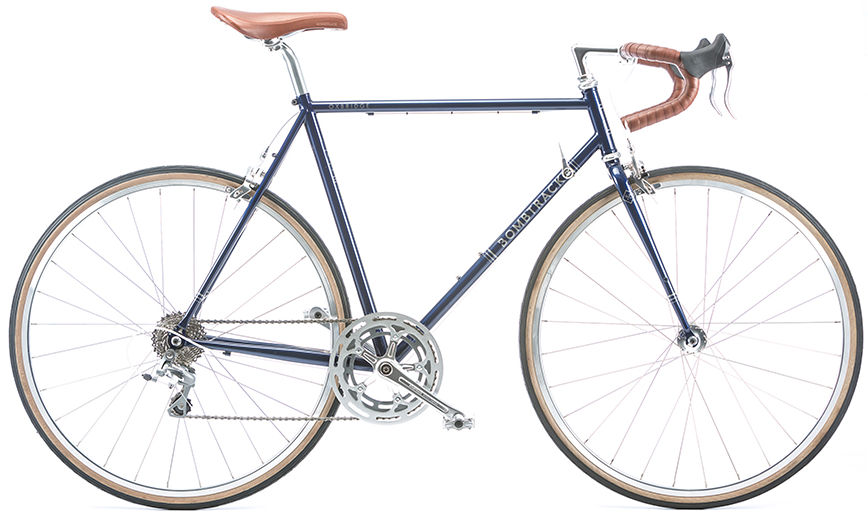

2016 Bombtrack Oxbridge geometry
Full frame geometry for the 2016 Bombtrack Oxbridge, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 510 | 398 | 74 | 72.5 | 97 | 545 | 523 | 770 | 60 | 416 | 1000 | 45 |
| S | 528 | 398 | 74 | 72.5 | 117 | 550 | 543 | 791 | 60 | 416 | 1003 | 45 |
| M | 549 | 407 | 73.5 | 73 | 135 | 569 | 563 | 810 | 60 | 416 | 1016 | 45 |
| L | 566 | 418 | 73 | 73 | 155 | 592 | 583 | 826 | 60 | 416 | 1031 | 45 |
All measurements in millimetres unless marked (°) for angles.
