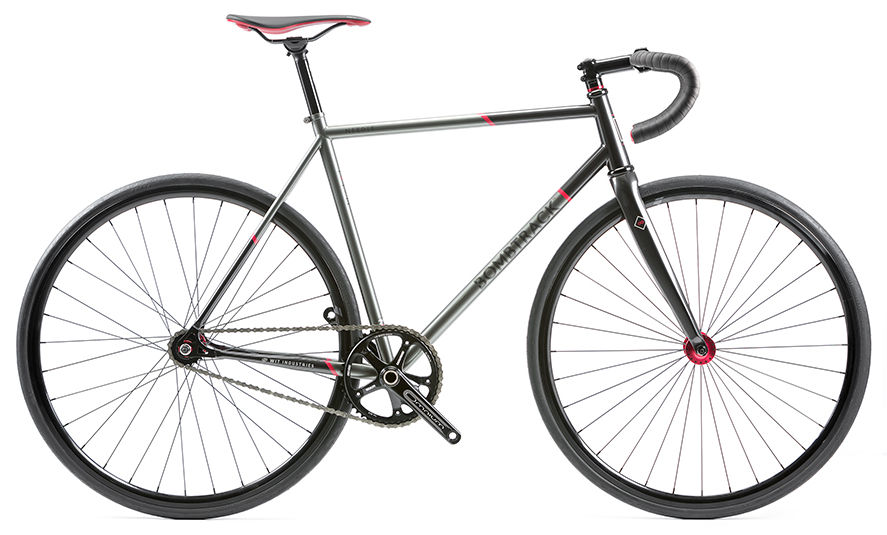

2016 Bombtrack Needle MK I geometry
Full frame geometry for the 2016 Bombtrack Needle MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 504 | 385 | 74.5 | 72.8 | 105 | 524 | 500 | 724 | 54 | 397 | 964 | 45 |
| M | 543 | 405 | 74 | 73 | 145 | 560 | 530 | 790 | 54 | 397 | 994 | 45 |
| L | 572 | 420 | 73.5 | 73.2 | 175 | 589 | 560 | 819 | 54 | 397 | 1016 | 45 |
All measurements in millimetres unless marked (°) for angles.
