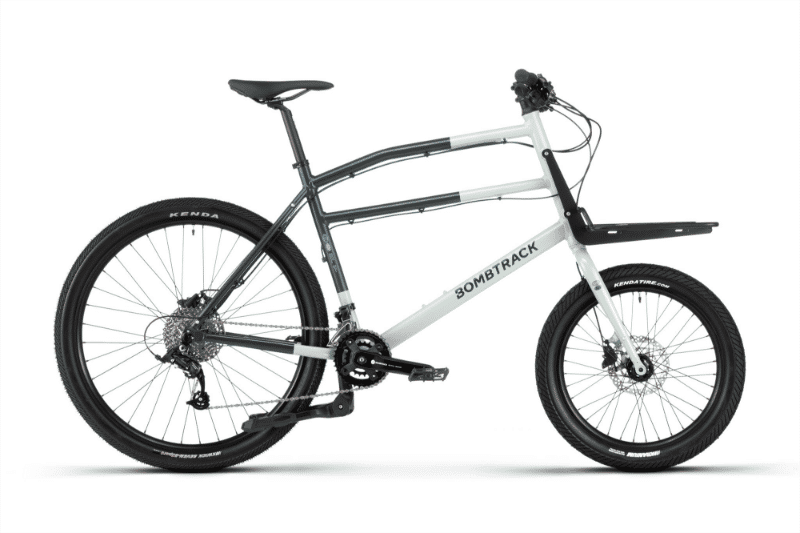

2025 Bombtrack Munroe Cargo geometry
Full frame geometry for the 2025 Bombtrack Munroe Cargo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 567 | 414 | 73 | 71 | 300 | 588 | 460 | 780 | 65 | 663 | 440 | 1097 | 40 | 45 |
| L | 612 | 430 | 73 | 70.5 | 350 | 617 | 520 | 832 | 65 | 701 | 440 | 1135 | 40 | 48 |
All measurements in millimetres unless marked (°) for angles.
