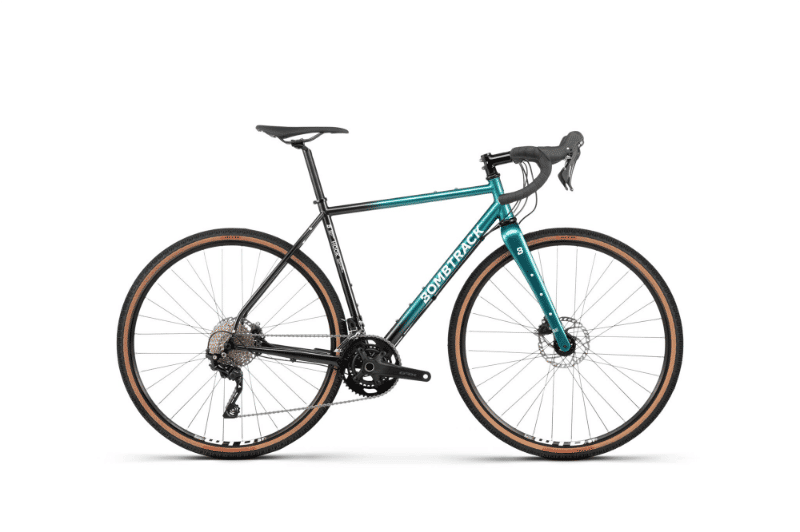

2025 Bombtrack Hook geometry
Full frame geometry for the 2025 Bombtrack Hook, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 522 | 355 | 73.6 | 70.6 | 100 | 509 | 460 | 732 | 54 | 576 | 410 | 979 | 50 | 65 |
| S | 534 | 366 | 73.6 | 71.1 | 110 | 523 | 490 | 752 | 54 | 586 | 410 | 989 | 50 | 62 |
| M | 565 | 375 | 73.6 | 71.6 | 130 | 541 | 525 | 803 | 64 | 597 | 425 | 1014 | 50 | 65 |
| L | 584 | 386 | 73.1 | 71.6 | 150 | 563 | 545 | 821 | 64 | 615 | 425 | 1031 | 50 | 65 |
| XL | 603 | 397 | 73.1 | 71.6 | 170 | 580 | 565 | 841 | 64 | 632 | 425 | 1049 | 50 | 65 |
All measurements in millimetres unless marked (°) for angles.
