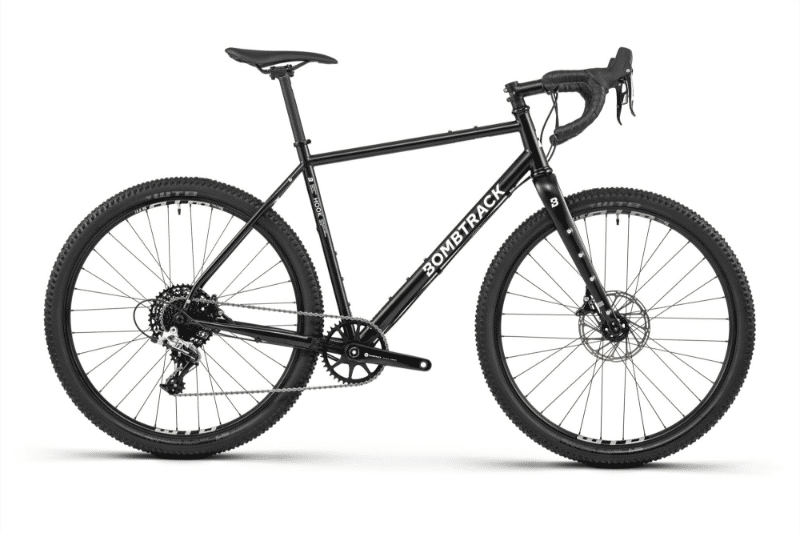

2025 Bombtrack Hook EXT geometry
Full frame geometry for the 2025 Bombtrack Hook EXT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 558 | 360 | 73.9 | 70.9 | 110 | 520 | 460 | 753 | 71 | 588 | 425 | 1003 | 53 | 64 |
| S | 577 | 369 | 73.9 | 70.9 | 130 | 534 | 500 | 782 | 71 | 603 | 425 | 1018 | 53 | 64 |
| M | 593 | 381 | 73.5 | 71.5 | 150 | 558 | 530 | 805 | 66 | 618 | 425 | 1034 | 53 | 61 |
| L | 612 | 390 | 73.5 | 71.5 | 170 | 572 | 570 | 834 | 66 | 632 | 425 | 1049 | 53 | 60 |
| XL | 631 | 403 | 73 | 71.5 | 190 | 597 | 600 | 857 | 66 | 652 | 425 | 1068 | 53 | 60 |
All measurements in millimetres unless marked (°) for angles.
