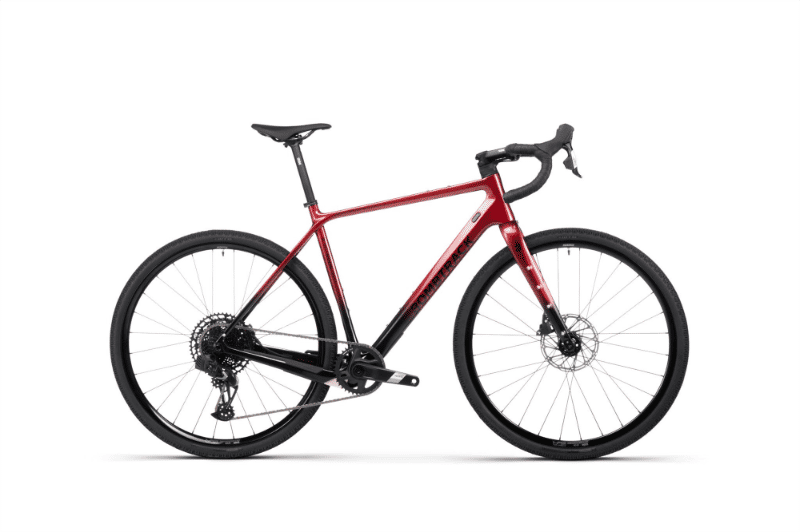

2025 Bombtrack Hook EXT C geometry
Full frame geometry for the 2025 Bombtrack Hook EXT C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 564 | 384 | 74.5 | 70.5 | 130 | 541 | 500 | 773 | 72 | 619 | 425 | 1034 | 53 | 69 |
| M | 583 | 396 | 74 | 70.5 | 150 | 563 | 530 | 805 | 72 | 637 | 429 | 1056 | 53 | 69 |
| L | 602 | 407 | 74 | 70.5 | 170 | 580 | 570 | 822 | 72 | 655 | 434 | 1079 | 53 | 69 |
All measurements in millimetres unless marked (°) for angles.
