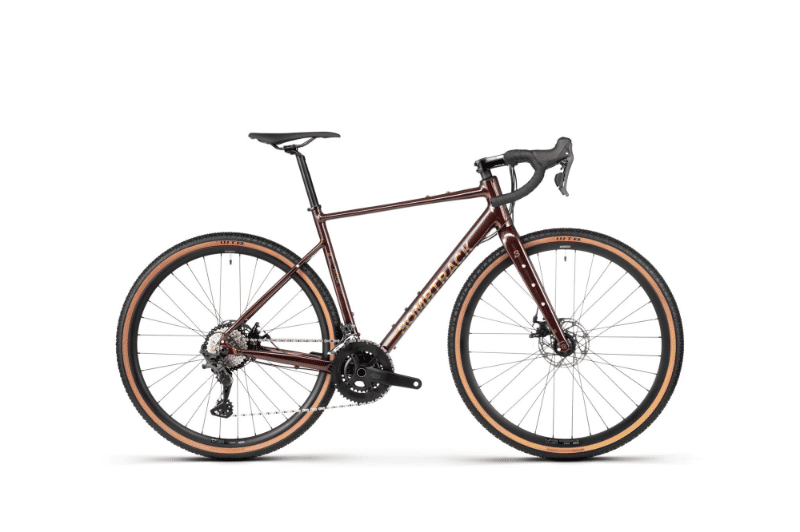

2025 Bombtrack Hook AL geometry
Full frame geometry for the 2025 Bombtrack Hook AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 551 | 374 | 74.2 | 70.7 | 145 | 529 | 490 | 769 | 57 | 600 | 410 | 1003 | 48 | 64 |
| M | 578 | 390 | 74.2 | 71.2 | 155 | 553 | 530 | 807 | 72 | 617 | 425 | 1031 | 48 | 71 |
| L | 601 | 404 | 74.2 | 71.2 | 180 | 574 | 550 | 828 | 72 | 639 | 429 | 1057 | 48 | 71 |
All measurements in millimetres unless marked (°) for angles.
