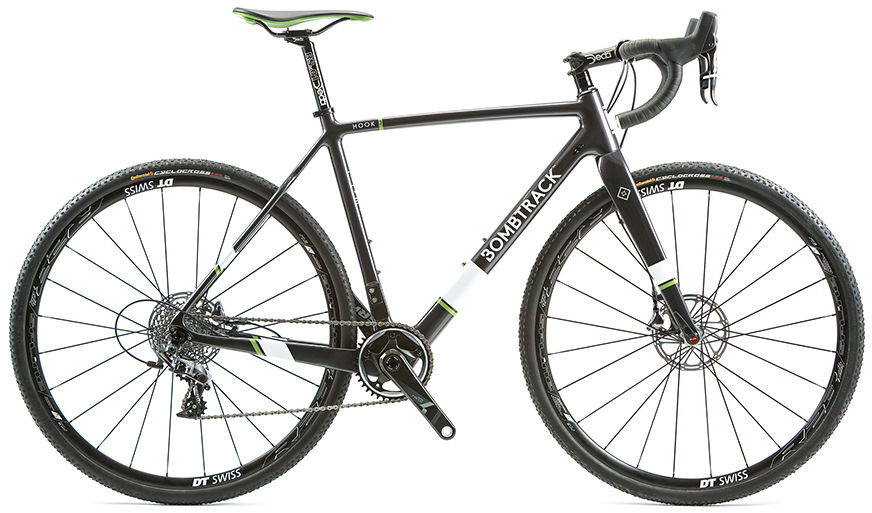

2016 Bombtrack Hook 3 geometry
Full frame geometry for the 2016 Bombtrack Hook 3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 510 | 378 | 75 | 70.5 | 100 | 510 | 480 | 762 | 53 | 425 | 1009 | 45 |
| S | 524 | 385 | 75 | 70.5 | 115 | 525 | 500 | 779 | 53 | 425 | 1020 | 45 |
| M | 538 | 386 | 74.5 | 71 | 125 | 535 | 520 | 793 | 55 | 425 | 1021 | 45 |
| L | 549 | 388 | 74 | 71.5 | 135 | 545 | 540 | 817 | 55 | 425 | 1022 | 45 |
| XL | 562 | 393 | 73.5 | 72 | 145 | 560 | 560 | 823 | 57 | 425 | 1027 | 45 |
| XXL | 578 | 398 | 73 | 72.5 | 160 | 575 | 580 | 838 | 57 | 425 | 1031 | 45 |
All measurements in millimetres unless marked (°) for angles.
