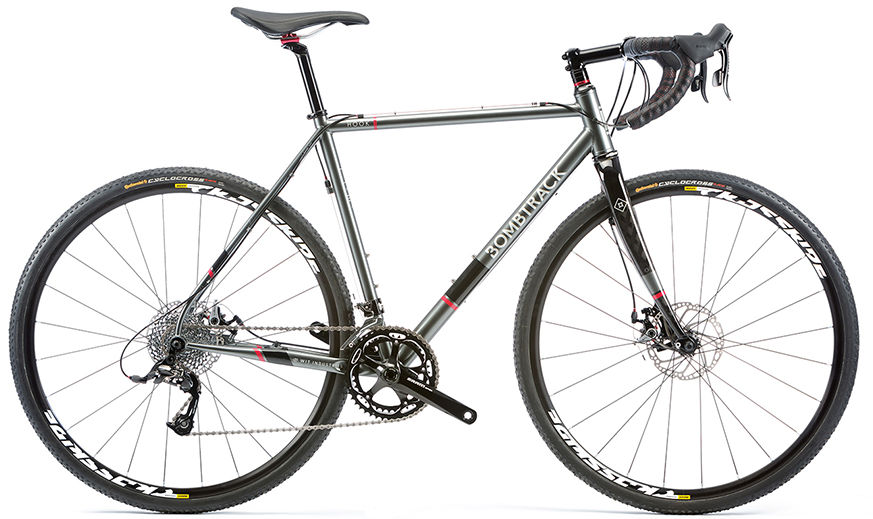

2016 Bombtrack Hook 1 geometry
Full frame geometry for the 2016 Bombtrack Hook 1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 530 | 374 | 74 | 71 | 100 | 526 | 510 | 778 | 60 | 425 | 1004 | 45 |
| M | 560 | 384 | 74 | 72 | 128 | 544 | 540 | 807 | 60 | 425 | 1014 | 45 |
| L | 572 | 393 | 73.5 | 72 | 140 | 562 | 560 | 822 | 60 | 425 | 1027 | 45 |
| XL | 591 | 404 | 73.5 | 72 | 160 | 579 | 580 | 840 | 60 | 425 | 1044 | 45 |
All measurements in millimetres unless marked (°) for angles.
