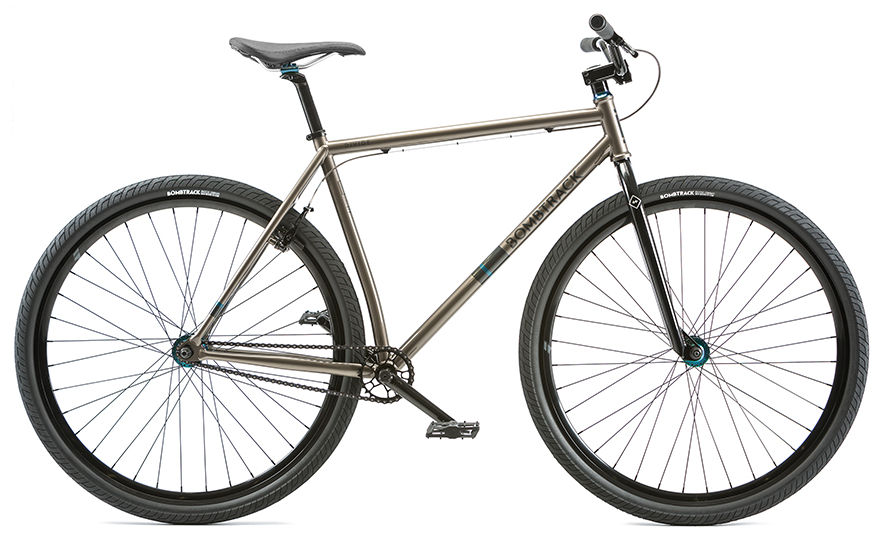

2016 Bombtrack Divide geometry
Full frame geometry for the 2016 Bombtrack Divide, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 550 | 422 | 74 | 73 | 120 | 587 | 470 | 794 | 45 | 403 | 1005 | 30 |
| M | 561 | 440 | 74 | 73 | 130 | 605 | 510 | 819 | 45 | 403 | 1028 | 30 |
| L | 580 | 460 | 74 | 73 | 150 | 628 | 560 | 582 | 45 | 403 | 1054 | 30 |
All measurements in millimetres unless marked (°) for angles.
