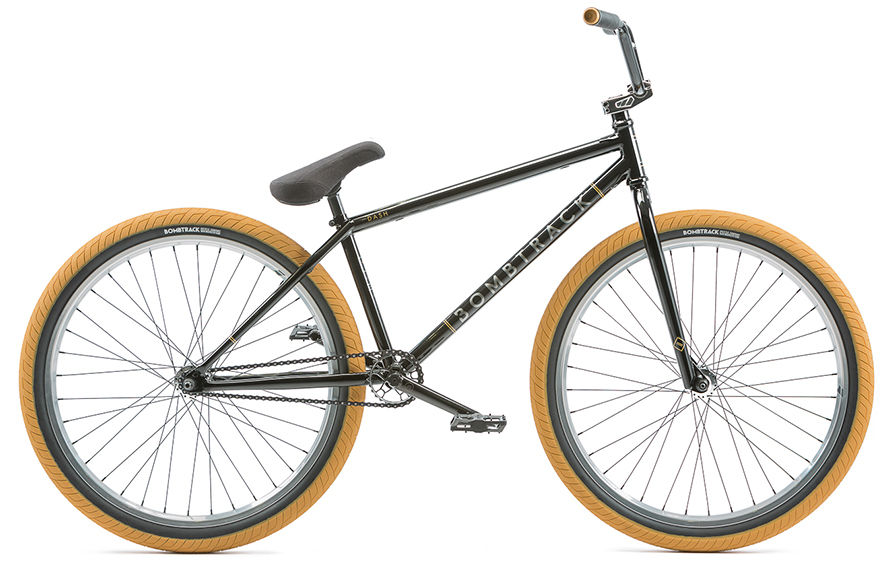

2016 Bombtrack Dash geometry
Full frame geometry for the 2016 Bombtrack Dash, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13 | 496 | 444 | 71 | 75 | 120 | 578 | 332 | 742 | 10 | 393 | 1001 | 24 |
All measurements in millimetres unless marked (°) for angles.
