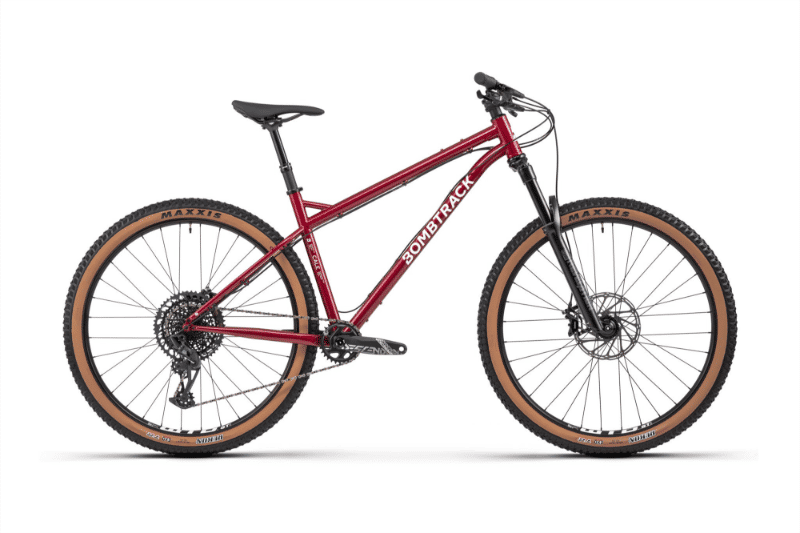

2025 Bombtrack Cale geometry
Full frame geometry for the 2025 Bombtrack Cale, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 610 | 433 | 74 | 67 | 110 | 608 | 430 | 783 | 55 | 721 | 440 | 1150 | 42 | 114 |
| L | 619 | 450 | 73.5 | 67 | 120 | 633 | 460 | 802 | 55 | 741 | 440 | 1170 | 42 | 114 |
| XL | 627 | 463 | 73.5 | 67.5 | 125 | 648 | 500 | 825 | 55 | 750 | 440 | 1180 | 42 | 110 |
All measurements in millimetres unless marked (°) for angles.
