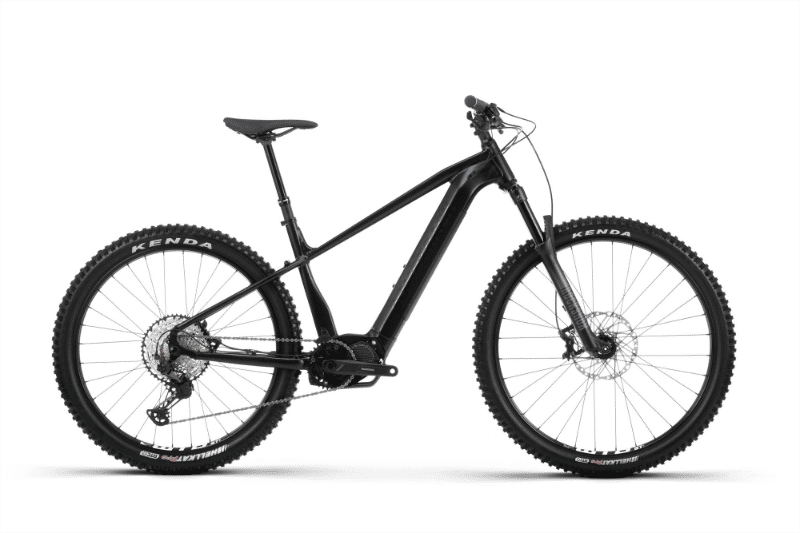

2025 Bombtrack Cale E geometry
Full frame geometry for the 2025 Bombtrack Cale E, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 608 | 438 | 75 | 66 | 110 | 601 | 390 | 780 | 45 | 734 | 440 | 1169 | 44 | 118 |
| M | 617 | 460 | 75 | 66 | 120 | 625 | 430 | 789 | 45 | 759 | 440 | 1195 | 44 | 118 |
| L | 626 | 475 | 75 | 66 | 130 | 643 | 460 | 808 | 45 | 778 | 440 | 1214 | 44 | 118 |
| XL | 635 | 495 | 75 | 66 | 140 | 665 | 500 | 832 | 45 | 802 | 440 | 1238 | 44 | 118 |
All measurements in millimetres unless marked (°) for angles.
