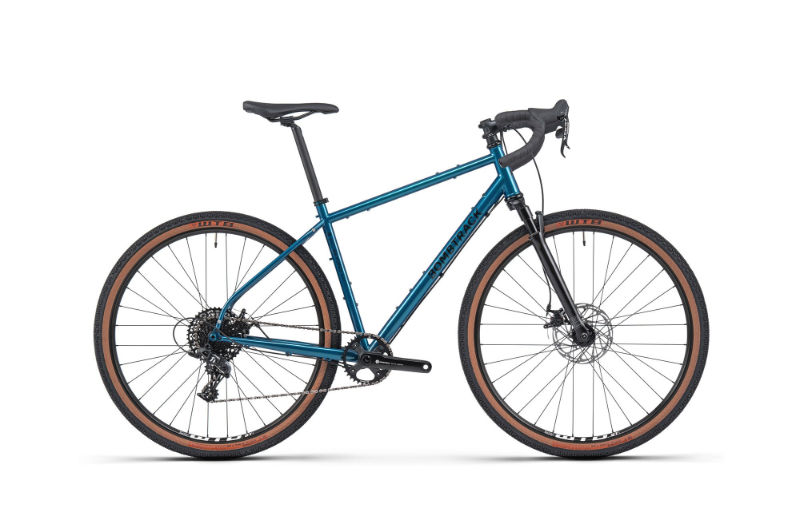

2025 Bombtrack Beyond SUS geometry
Full frame geometry for the 2025 Bombtrack Beyond SUS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 538 | 347 | 74.9 | 69.9 | 100 | 493 | 400 | 730 | 54 | 581 | 425 | 1000 | 50 | 76 |
| S | 569 | 362 | 74.4 | 70.4 | 130 | 522 | 440 | 764 | 54 | 602 | 425 | 1021 | 50 | 73 |
| M | 605 | 376 | 73.4 | 70.9 | 150 | 558 | 480 | 805 | 69 | 620 | 455 | 1066 | 50 | 76 |
| L | 647 | 389 | 72.9 | 71.9 | 190 | 590 | 520 | 845 | 69 | 636 | 455 | 1082 | 50 | 69 |
| XL | 675 | 408 | 72.4 | 71.9 | 220 | 624 | 560 | 876 | 69 | 663 | 455 | 1110 | 50 | 69 |
All measurements in millimetres unless marked (°) for angles.
