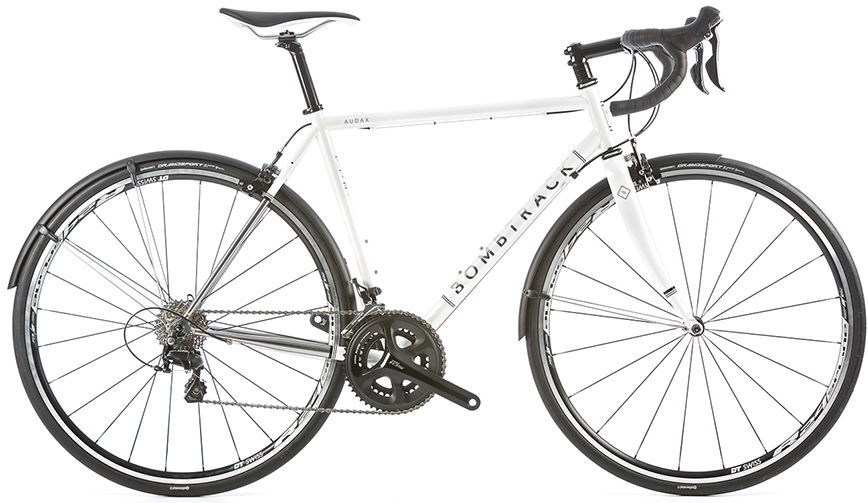

2016 Bombtrack Audax MK I geometry
Full frame geometry for the 2016 Bombtrack Audax MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 510 | 378 | 74 | 71 | 100 | 525 | 490 | 740 | 72 | 430 | 1000 | 45 |
| S | 528 | 382 | 73 | 71 | 120 | 545 | 510 | 758 | 72 | 430 | 1011 | 45 |
| M | 543 | 393 | 73 | 71 | 135 | 560 | 530 | 775 | 72 | 430 | 1027 | 45 |
| L | 563 | 396 | 72.5 | 71.5 | 155 | 575 | 550 | 794 | 72 | 430 | 1033 | 45 |
| XL | 578 | 407 | 72.5 | 71.5 | 170 | 590 | 570 | 811 | 72 | 430 | 1048 | 45 |
All measurements in millimetres unless marked (°) for angles.
