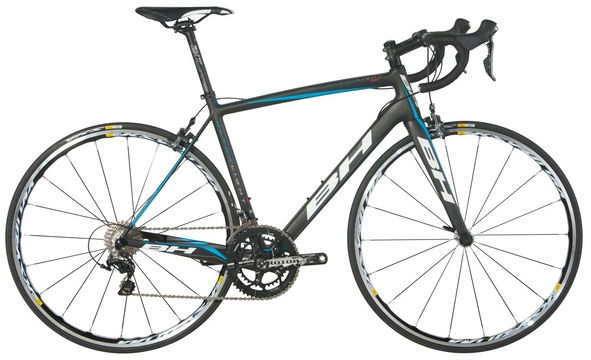

2013 BH Ultralight RC geometry
Full frame geometry for the 2013 BH Ultralight RC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 515 | 370 | 74.8 | 72 | 108 | 510 | 445 | 0 | 68 | 560 | 402 | 952 | 43 | 63 |
| XS | 518 | 382 | 74 | 72.2 | 115 | 530 | 470 | 0 | 68 | 572 | 402 | 964 | 43 | 62 |
| S | 523 | 383 | 73 | 72.5 | 120 | 543 | 480 | 0 | 67 | 573 | 402 | 965 | 43 | 60 |
| M | 549 | 384 | 72.5 | 73 | 150 | 557 | 505 | 0 | 65 | 578 | 402 | 971 | 43 | 57 |
| L | 583 | 386 | 72.5 | 73 | 185 | 570 | 540 | 0 | 65 | 591 | 402 | 984 | 43 | 57 |
| XL | 594 | 396 | 72.5 | 73.3 | 196 | 583 | 552 | 0 | 65 | 601 | 402 | 995 | 43 | 56 |
All measurements in millimetres unless marked (°) for angles.
