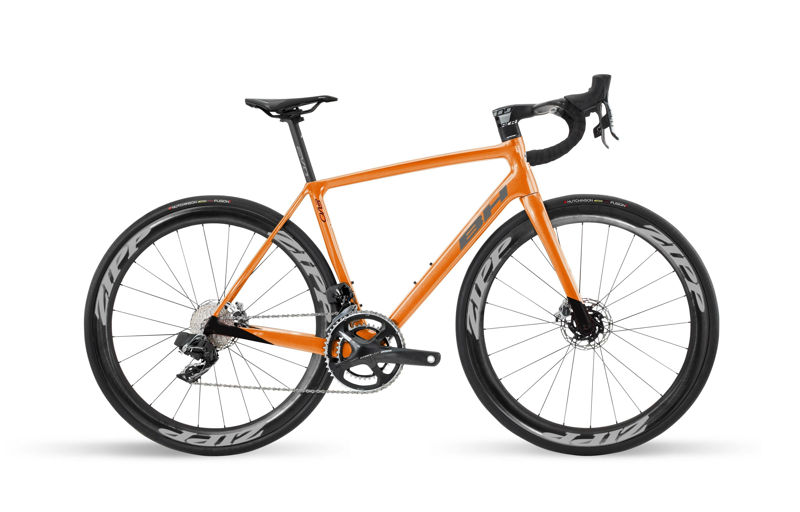

2022 BH Ultralight EVO geometry
Full frame geometry for the 2022 BH Ultralight EVO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 517.2 | 381.6 | 74.8 | 72.2 | 115 | 530 | 470 | 402 |
| SM | 523.4 | 383 | 74 | 72.5 | 120 | 543 | 480 | 402 |
| MD | 549.2 | 383.9 | 73 | 73 | 150 | 557 | 505 | 402 |
| LA | 583.2 | 386.1 | 72.5 | 73 | 185 | 570 | 540 | 402 |
All measurements in millimetres unless marked (°) for angles.
