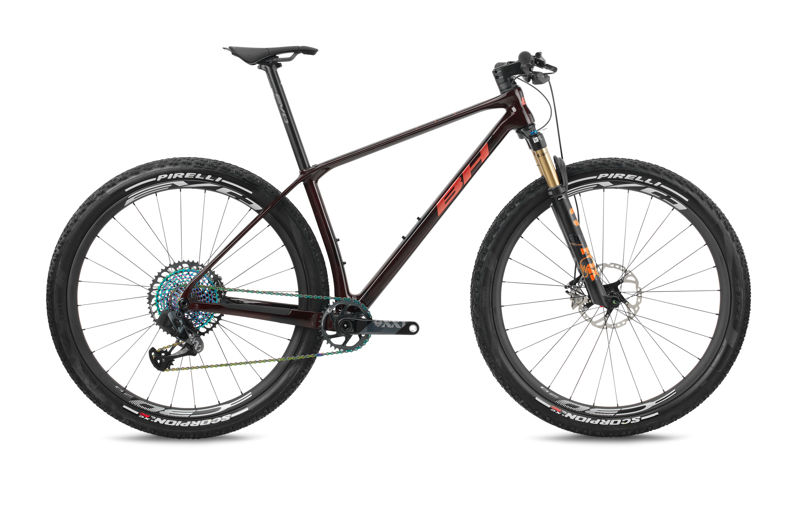

2023 BH Ultimate geometry
Full frame geometry for the 2023 BH Ultimate , size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| SM | 605 | 410 | 75 | 68 | 95 | 583 | 380 | 65 | 420 | 1093 |
| MD | 610 | 435 | 75 | 68 | 100 | 608 | 420 | 65 | 420 | 1119 |
| LA | 624 | 445 | 75 | 68 | 115 | 631 | 460 | 65 | 420 | 1145 |
| XL | 638 | 470 | 75 | 68 | 130 | 650 | 510 | 65 | 420 | 1165 |
All measurements in millimetres unless marked (°) for angles.
