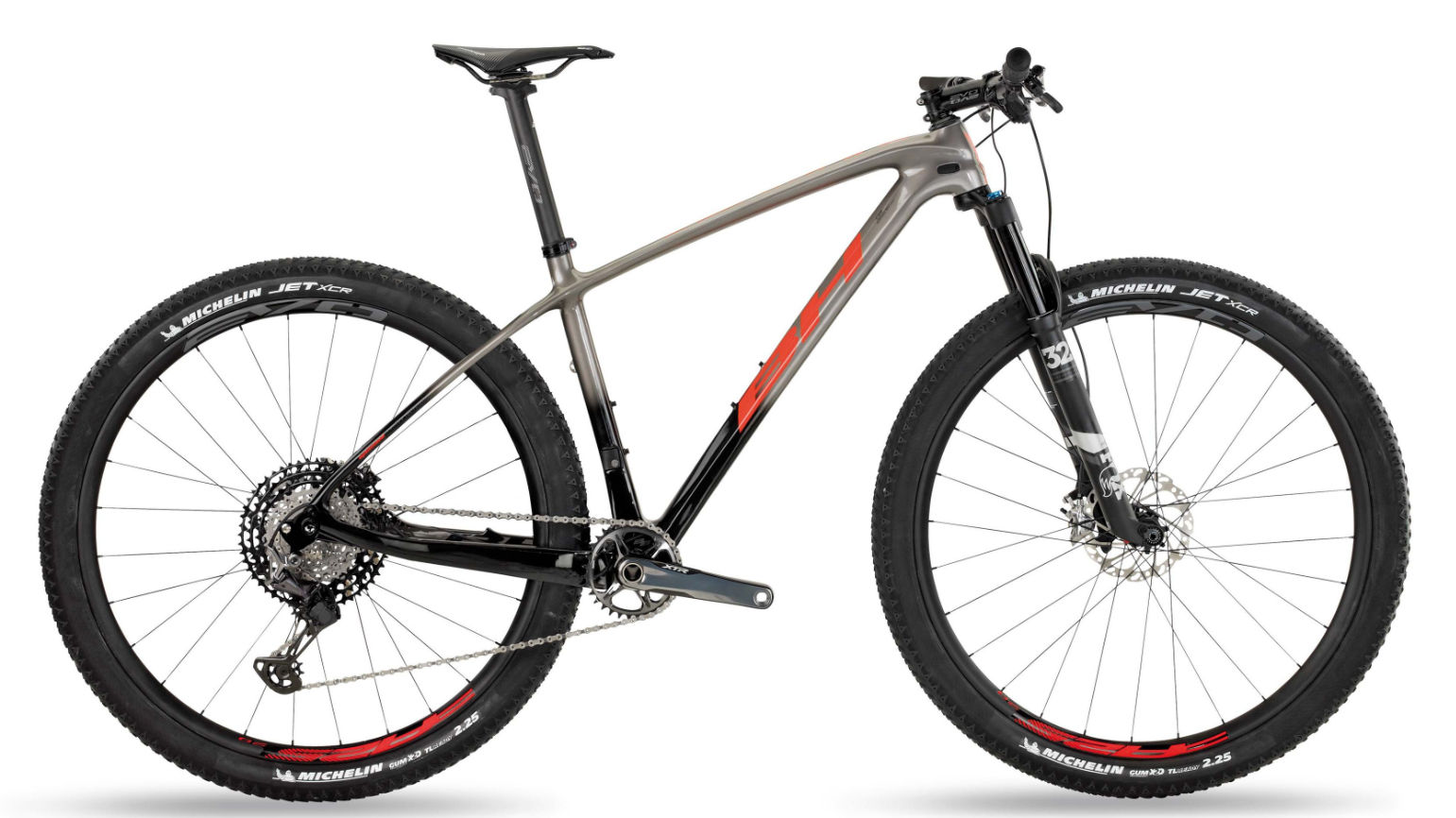

2018 BH Ultimate 29 MK II geometry
Full frame geometry for the 2018 BH Ultimate 29 MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 608 | 389 | 73 | 68.5 | 95 | 575 | 400 | 65 | 430 |
| M | 610 | 414 | 73 | 68.5 | 100 | 600 | 440 | 65 | 430 |
| L | 624 | 431 | 73 | 68.5 | 115 | 622 | 480 | 65 | 430 |
| XL | 638 | 455 | 73 | 68.5 | 130 | 650 | 545 | 65 | 430 |
All measurements in millimetres unless marked (°) for angles.
