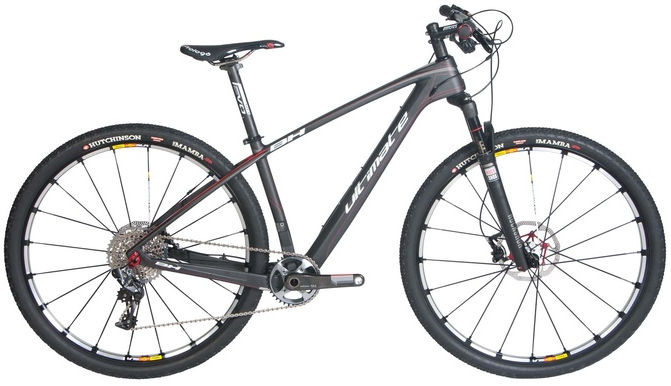

2015 BH Ultimate 29 MK I geometry
Full frame geometry for the 2015 BH Ultimate 29 MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 608 | 397 | 71.5 | 69 | 100 | 580 | 400 | 436 |
| M | 612 | 414 | 71.5 | 69 | 100 | 607 | 450 | 436 |
| L | 630 | 423 | 71.5 | 69 | 120 | 620 | 480 | 436 |
| XL | 651 | 443 | 71.5 | 69 | 140 | 650 | 530 | 436 |
All measurements in millimetres unless marked (°) for angles.
