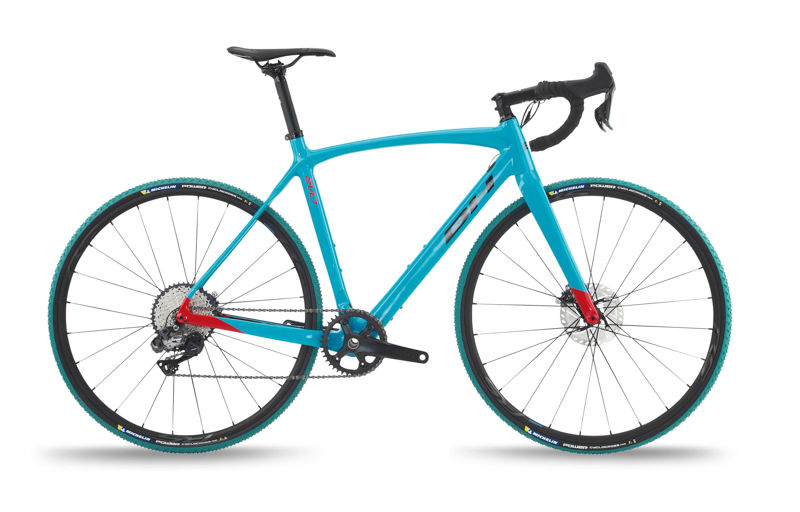

2022 BH RX Team geometry
Full frame geometry for the 2022 BH RX Team, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| SM | 520.5 | 389.9 | 74.5 | 71 | 120 | 520 | 500 | 425 |
| MD | 535.8 | 406.4 | 74 | 72 | 135 | 538 | 535 | 425 |
| LA | 560.3 | 420 | 73.5 | 72 | 155 | 557 | 560 | 425 |
| XL | 579.5 | 432.3 | 73 | 72.5 | 170 | 575 | 580 | 425 |
All measurements in millimetres unless marked (°) for angles.
