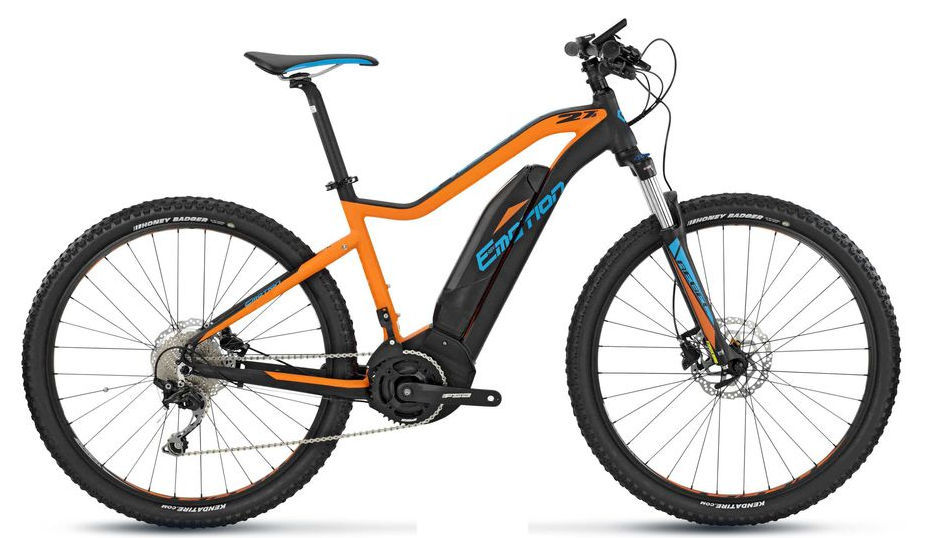

2018 BH Rebel 27.5 Lite geometry
Full frame geometry for the 2018 BH Rebel 27.5 Lite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 587 | 394 | 73 | 69 | 110 | 575 | 400 | 649 | 455 |
| M | 597 | 413 | 73 | 69 | 120 | 595 | 450 | 671 | 455 |
| L | 615 | 427 | 73 | 69 | 140 | 615 | 510 | 693 | 455 |
All measurements in millimetres unless marked (°) for angles.
