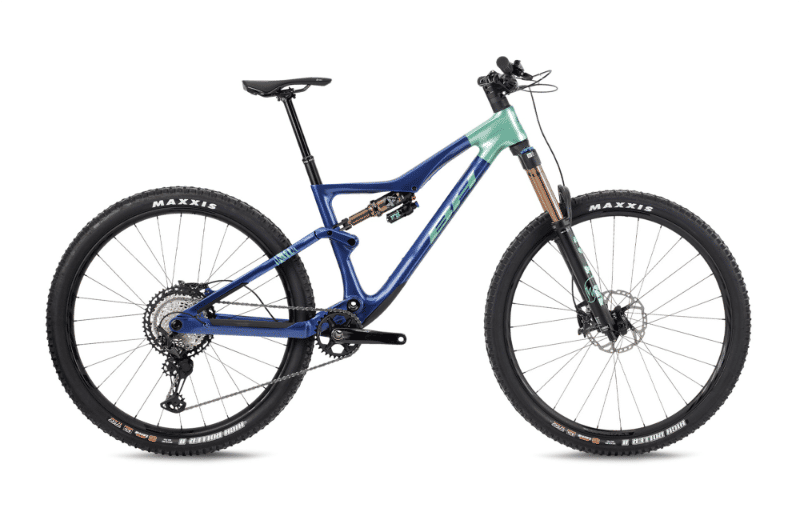

2026 BH Lynx Trail geometry
Full frame geometry for the 2026 BH Lynx Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 608.2 | 430 | 77 | 65 | 95 | 555.5 | 390 | 30 | 715.6 | 435 | 1145.6 |
| MD | 610.1 | 455 | 77 | 65 | 100 | 582.1 | 420 | 30 | 738.6 | 435 | 1168.6 |
| LA | 619.8 | 475 | 77 | 65 | 110 | 605.2 | 440 | 30 | 763.5 | 435 | 1193.5 |
| XL | 633.8 | 490 | 77 | 65 | 125 | 624.9 | 490 | 30 | 784.5 | 435 | 1214.5 |
All measurements in millimetres unless marked (°) for angles.
