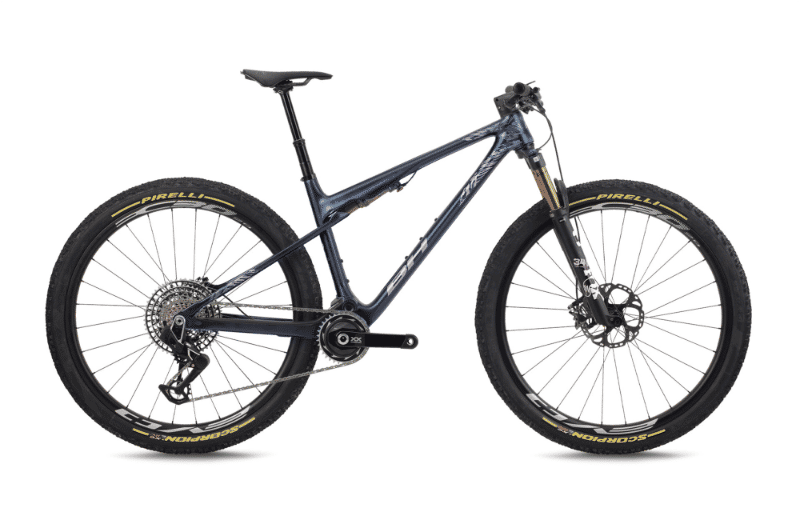

2026 BH Lynx SLS geometry
Full frame geometry for the 2026 BH Lynx SLS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| MD | 590 | 445 | 76 | 67 | 90 | 592 | 440 | 50 | 426 | 1149 |
| SM | 590 | 420 | 76 | 67 | 90 | 567 | 420 | 50 | 426 | 1124 |
| LA | 609 | 465 | 76 | 67 | 110 | 617 | 480 | 50 | 426 | 1177 |
| XL | 618 | 485 | 76 | 67 | 120 | 640 | 510 | 50 | 426 | 1201 |
All measurements in millimetres unless marked (°) for angles.
