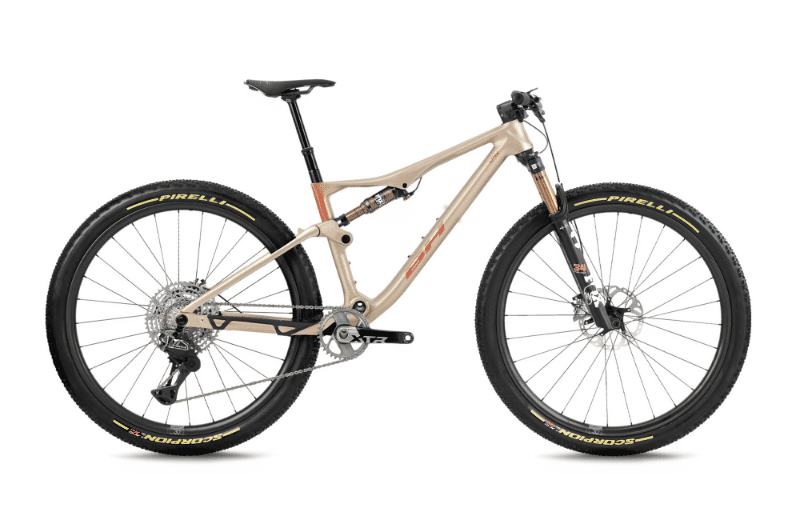

2026 BH Lynx Race Carbon geometry
Full frame geometry for the 2026 BH Lynx Race Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 588.9 | 445 | 76 | 67 | 90 | 591.8 | 420 | 40 | 726.9 | 430 | 1160.8 |
| SM | 588.9 | 420 | 76 | 67 | 90 | 566.8 | 400 | 40 | 702 | 430 | 1135.8 |
| LA | 598.1 | 470 | 76 | 67 | 100 | 619.1 | 460 | 40 | 755.8 | 430 | 1189.7 |
| XL | 616.5 | 490 | 76 | 67 | 120 | 643.7 | 500 | 40 | 783.5 | 430 | 1217.5 |
All measurements in millimetres unless marked (°) for angles.
