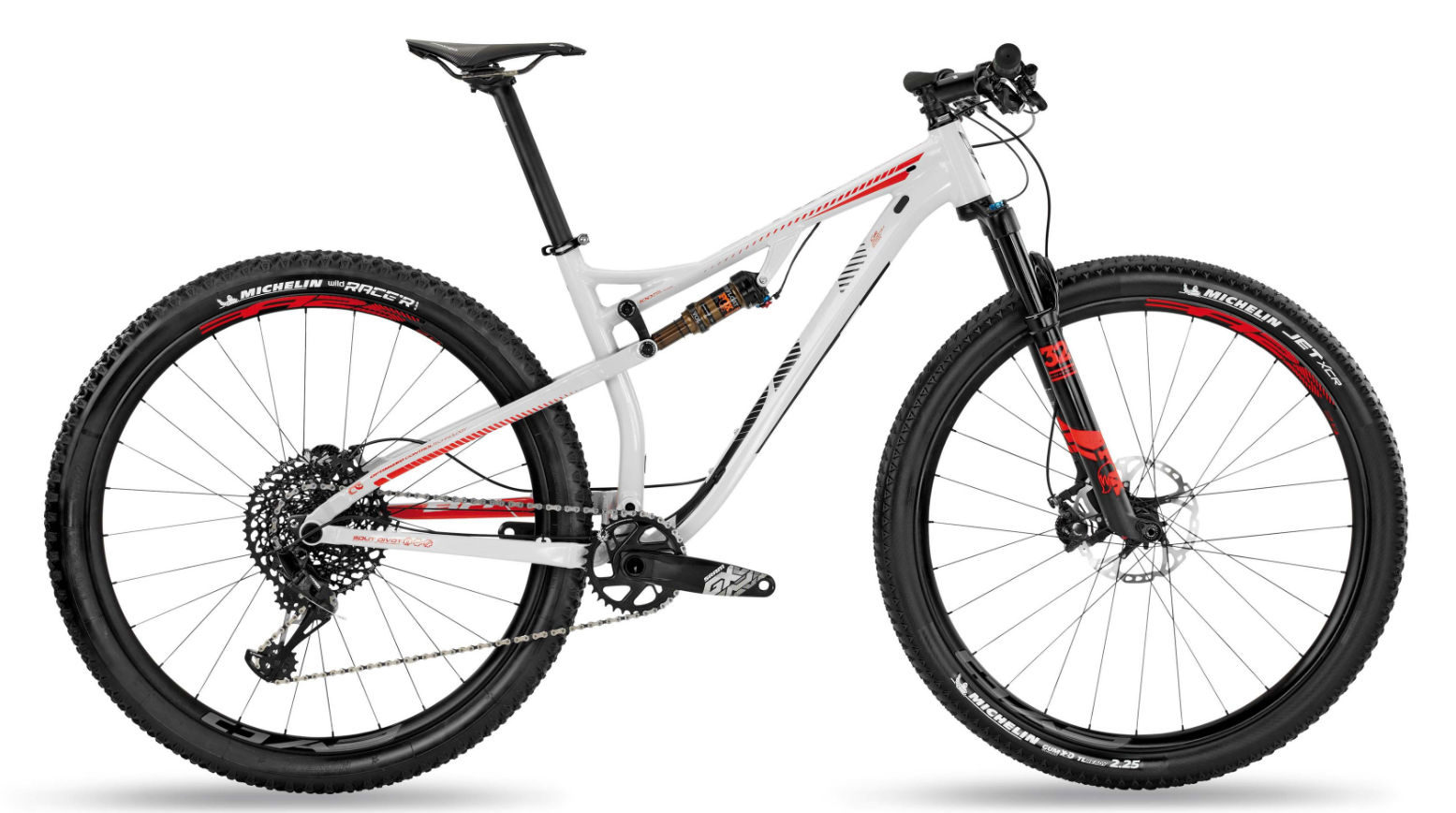

2018 BH Lynx Race Aluminium geometry
Full frame geometry for the 2018 BH Lynx Race Aluminium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 585 | 398 | 73.5 | 68.5 | 100 | 571 | 410 | 40 | 425 |
| M | 594 | 423 | 73.5 | 68.5 | 110 | 599 | 440 | 40 | 425 |
| L | 608 | 442 | 73.5 | 68.5 | 125 | 622 | 480 | 40 | 425 |
| XL | 622 | 460 | 73.5 | 68.5 | 140 | 644 | 530 | 40 | 425 |
All measurements in millimetres unless marked (°) for angles.
