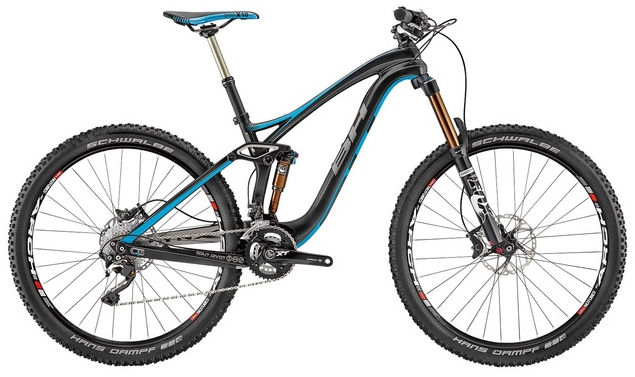

2015 BH Lynx 6 27.5 Carbon geometry
Full frame geometry for the 2015 BH Lynx 6 27.5 Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 576 | 400 | 73 | 66.9 | 100 | 583 | 400 | 426 | 1123 |
| M | 586 | 413 | 73 | 66.9 | 110 | 600 | 440 | 426 | 1140 |
| L | 595 | 428 | 73 | 66.9 | 120 | 615 | 480 | 426 | 1160 |
All measurements in millimetres unless marked (°) for angles.
