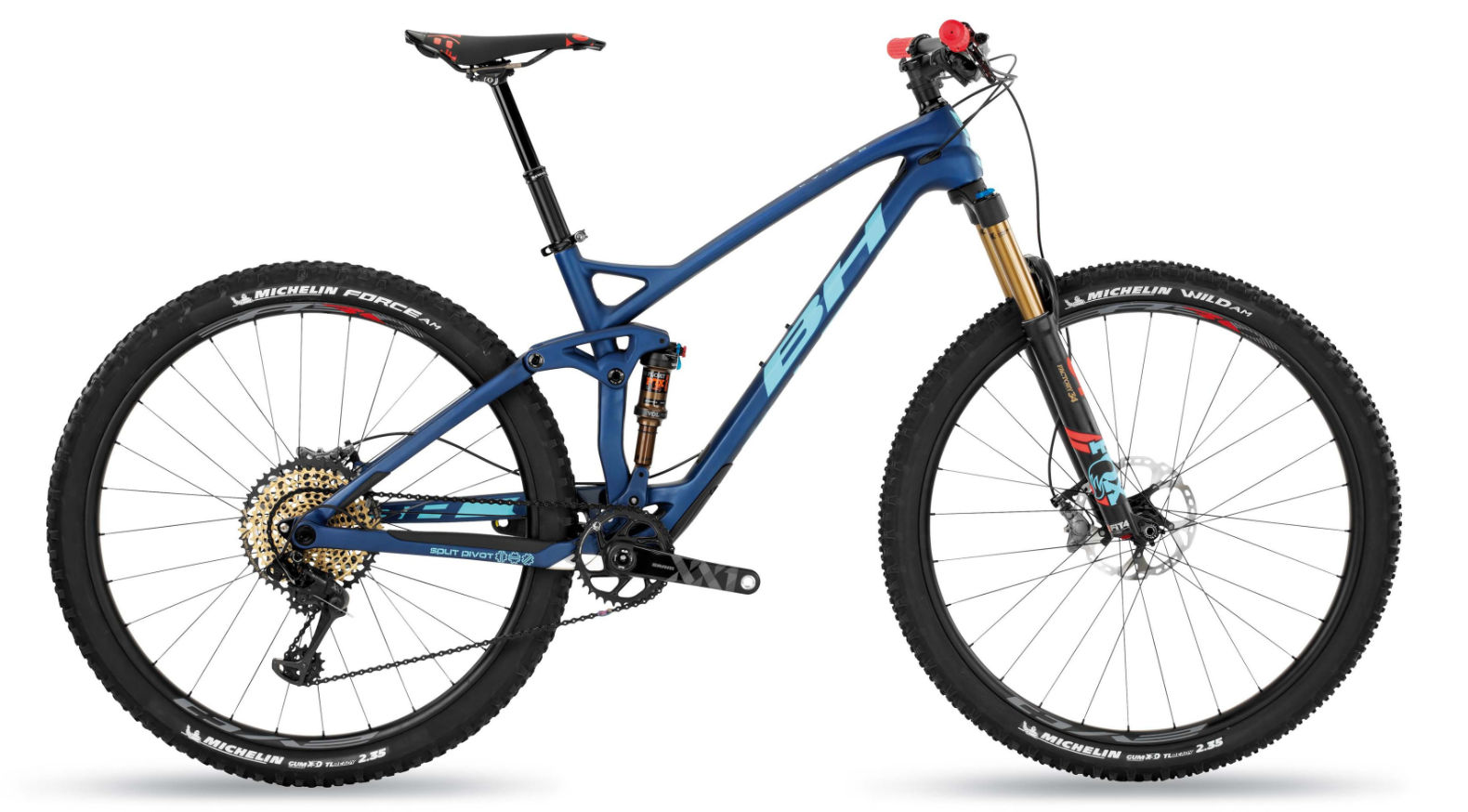

2018 BH Lynx 5 Carbon geometry
Full frame geometry for the 2018 BH Lynx 5 Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| SM | 601 | 425 | 75.5 | 66.5 | 100 | 583 | 400 | 35 | 435 | 1160 |
| M | 606 | 440 | 75.5 | 66.5 | 110 | 597 | 440 | 35 | 435 | 1175 |
| L | 615 | 455 | 75.5 | 66.5 | 120 | 616 | 480 | 35 | 435 | 1194 |
| XL | 624 | 471 | 75.5 | 66.5 | 130 | 635 | 520 | 35 | 435 | 1214 |
All measurements in millimetres unless marked (°) for angles.
