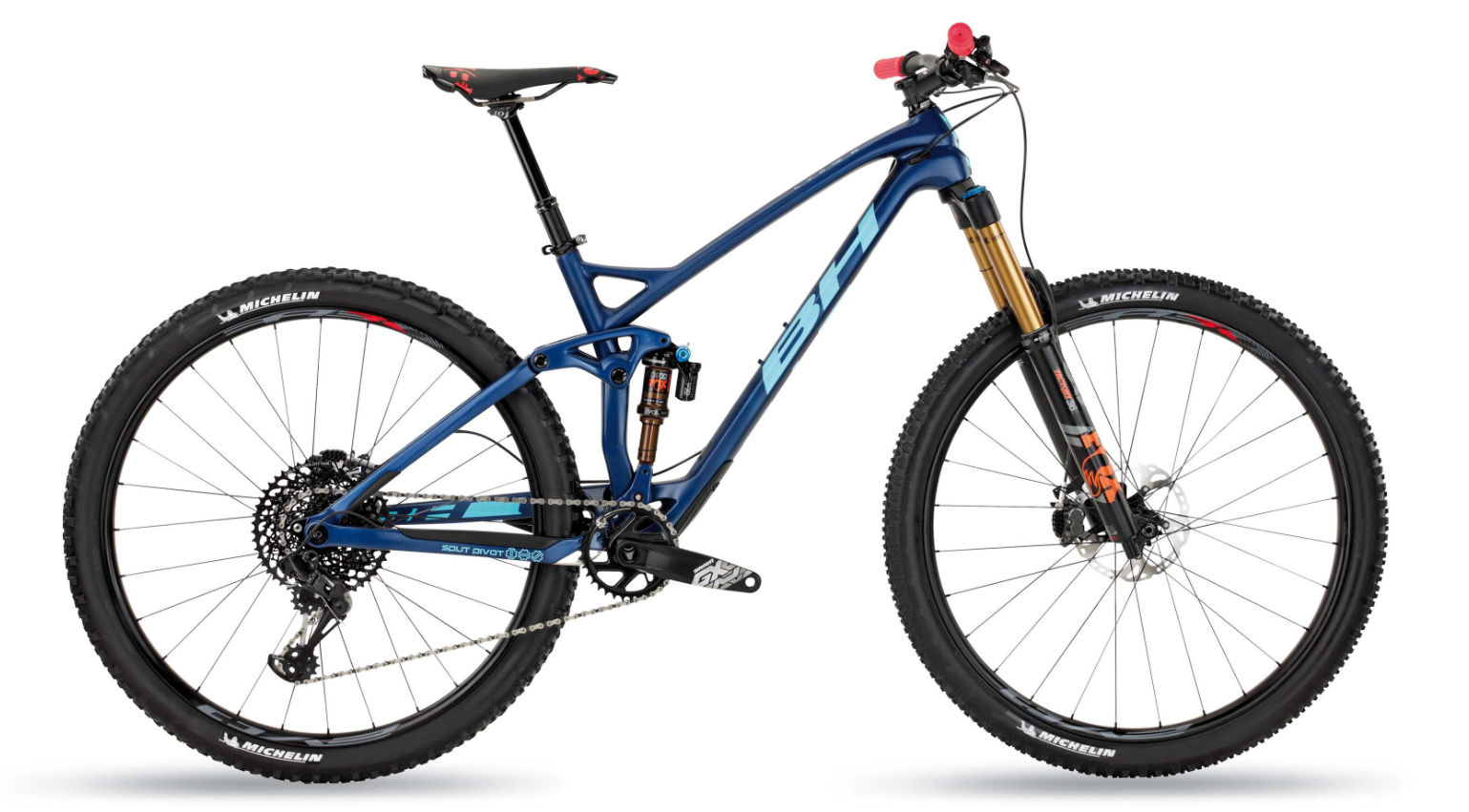

2018 BH Lynx 5 Carbon LT geometry
Full frame geometry for the 2018 BH Lynx 5 Carbon LT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| SM | 620 | 420 | 74 | 65 | 100 | 583 | 400 | 28 | 435 | 1160 |
| XL | 624 | 465 | 74 | 65 | 130 | 635 | 520 | 28 | 435 | 1214 |
| M | 626 | 435 | 74 | 65 | 110 | 597 | 440 | 28 | 435 | 1175 |
| L | 635 | 450 | 74 | 65 | 120 | 616 | 480 | 28 | 435 | 1194 |
All measurements in millimetres unless marked (°) for angles.
