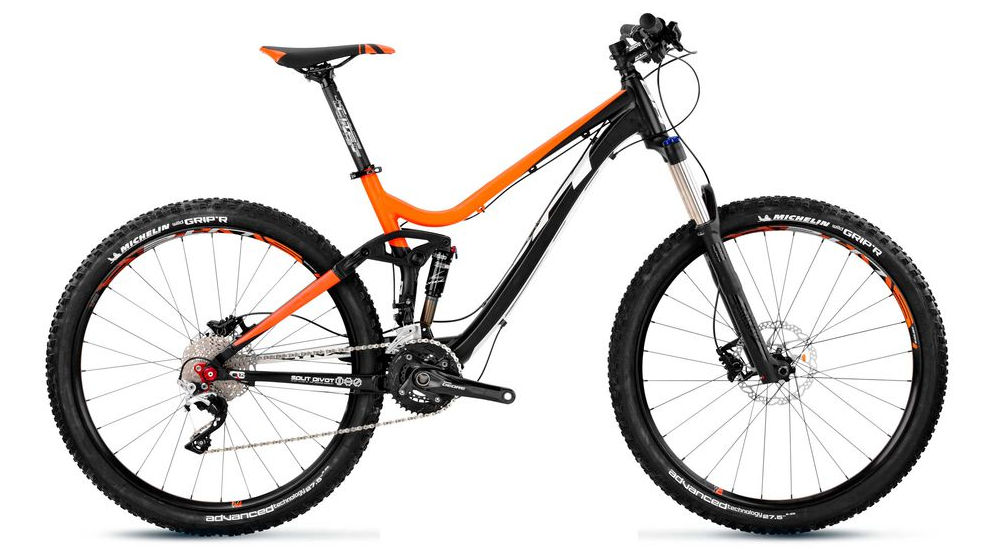

2018 BH Lynx 4.8 27.5 Aluminium geometry
Full frame geometry for the 2018 BH Lynx 4.8 27.5 Aluminium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 585 | 418 | 73 | 68 | 100 | 600 | 400 | 25 | 426 |
| M | 598 | 442 | 73 | 68 | 125 | 625 | 440 | 25 | 426 |
| L | 614 | 458 | 73 | 68 | 135 | 640 | 480 | 25 | 426 |
| XL | 630 | 475 | 73 | 68 | 145 | 655 | 530 | 25 | 426 |
All measurements in millimetres unless marked (°) for angles.
