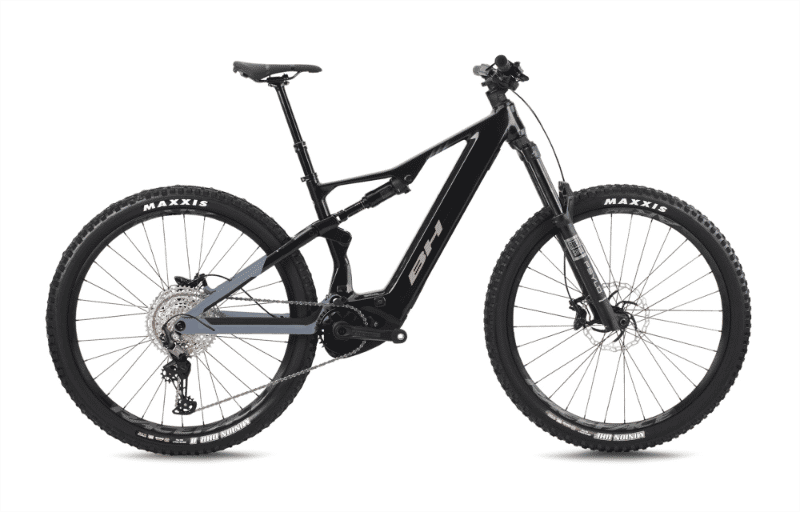

2027 BH iLynx+ NX Enduro geometry
Full frame geometry for the 2027 BH iLynx+ NX Enduro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 613 | 432 | 76 | 64 | 90 | 583 | 400 | 756 | 21 | 766 | 440 | 1206 |
| MD | 621 | 448 | 76 | 64 | 100 | 601 | 420 | 772 | 21 | 799 | 440 | 1226 |
| LA | 628 | 468 | 76 | 64 | 110 | 623 | 440 | 789 | 21 | 810 | 440 | 1250 |
| XL | 636 | 485 | 76 | 64 | 125 | 644 | 480 | 814 | 21 | 833 | 440 | 1273 |
All measurements in millimetres unless marked (°) for angles.
