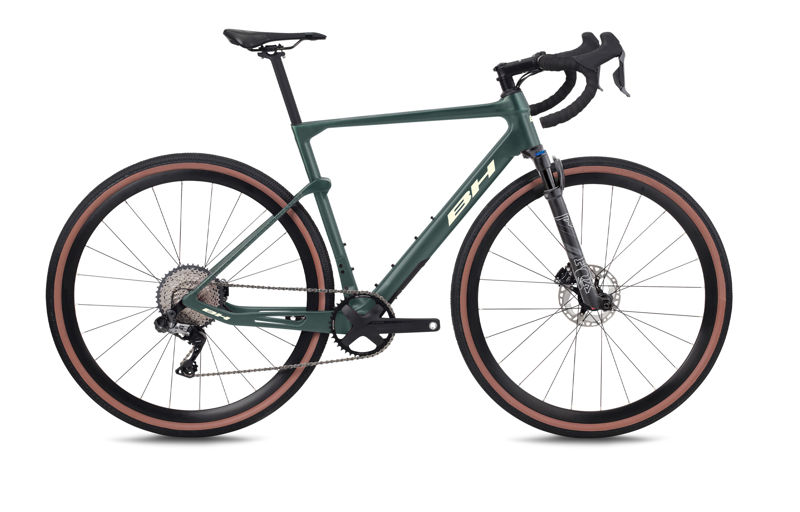

2022 BH GravelX geometry
Full frame geometry for the 2022 BH GravelX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| SM | 540 | 370 | 73.8 | 70.5 | 120 | 527.4 | 500 | 428 |
| MD | 558.8 | 377 | 73 | 71 | 140 | 547.8 | 520 | 428 |
| LA | 579.7 | 387 | 72.8 | 71.5 | 160 | 567 | 540 | 428 |
| XL | 598.6 | 398 | 72.5 | 72 | 180 | 586.7 | 560 | 428 |
All measurements in millimetres unless marked (°) for angles.
