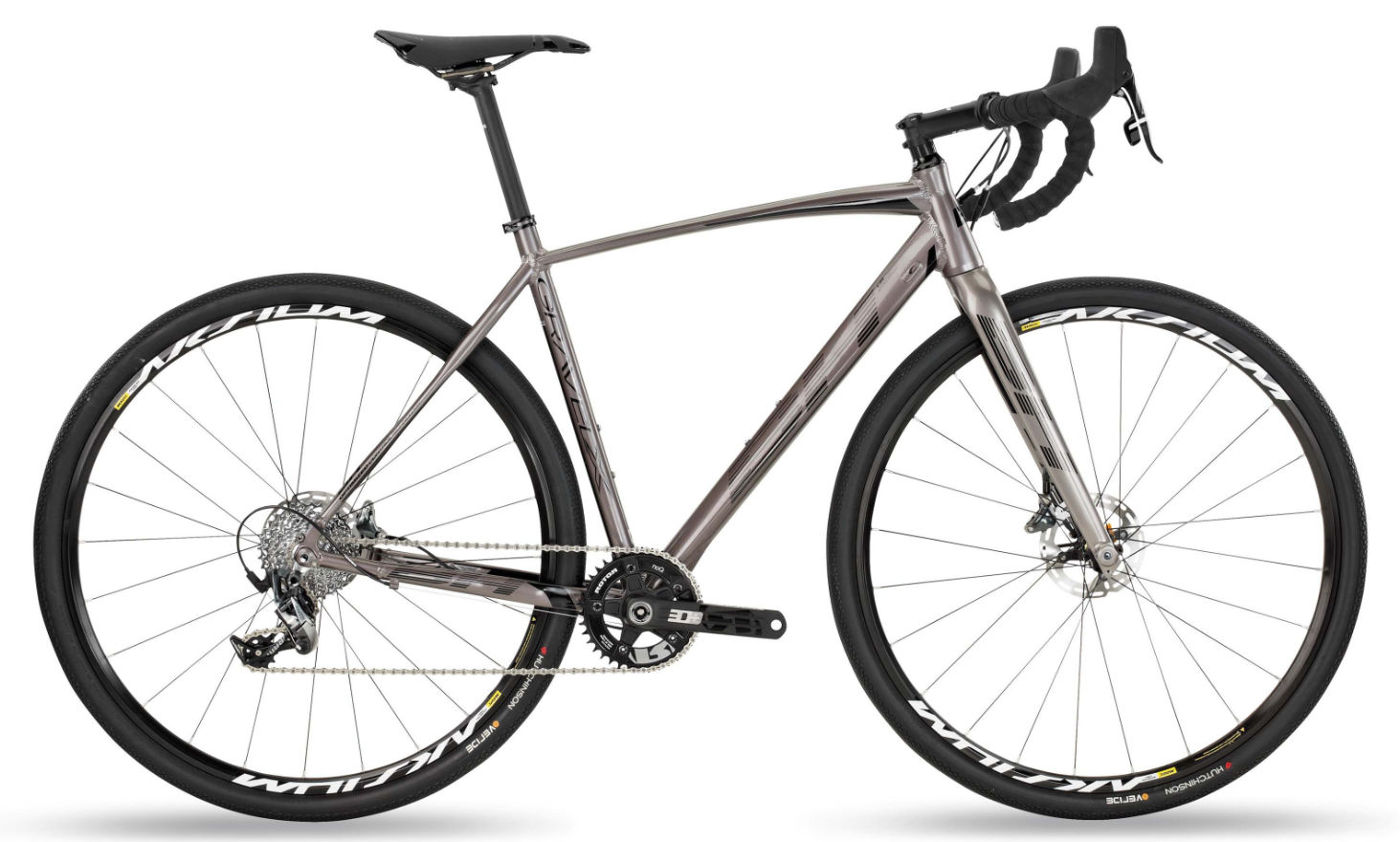

2018 BH Gravel geometry
Full frame geometry for the 2018 BH Gravel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 535 | 366 | 73.8 | 70.5 | 120 | 523 | 500 | 428 |
| M | 563 | 371 | 73 | 71.5 | 140 | 543 | 520 | 428 |
| L | 584 | 380 | 72.8 | 72 | 160 | 561 | 540 | 428 |
| XL | 603 | 392 | 72.5 | 72 | 180 | 582 | 560 | 428 |
All measurements in millimetres unless marked (°) for angles.
