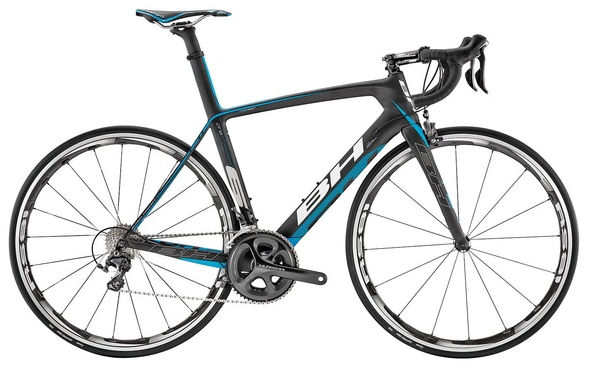

2013 BH G6 Pro geometry
Full frame geometry for the 2013 BH G6 Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 514 | 374 | 74 | 72 | 110 | 520 | 530 | 402 |
| S | 523 | 383 | 72.8 | 72.5 | 120 | 543 | 600 | 402 |
| M | 549 | 384 | 72.5 | 73 | 150 | 557 | 640 | 402 |
| L | 583 | 386 | 72.5 | 73 | 185 | 570 | 680 | 402 |
| XL | 594 | 396 | 72.5 | 73.5 | 196 | 583 | 690 | 402 |
All measurements in millimetres unless marked (°) for angles.
