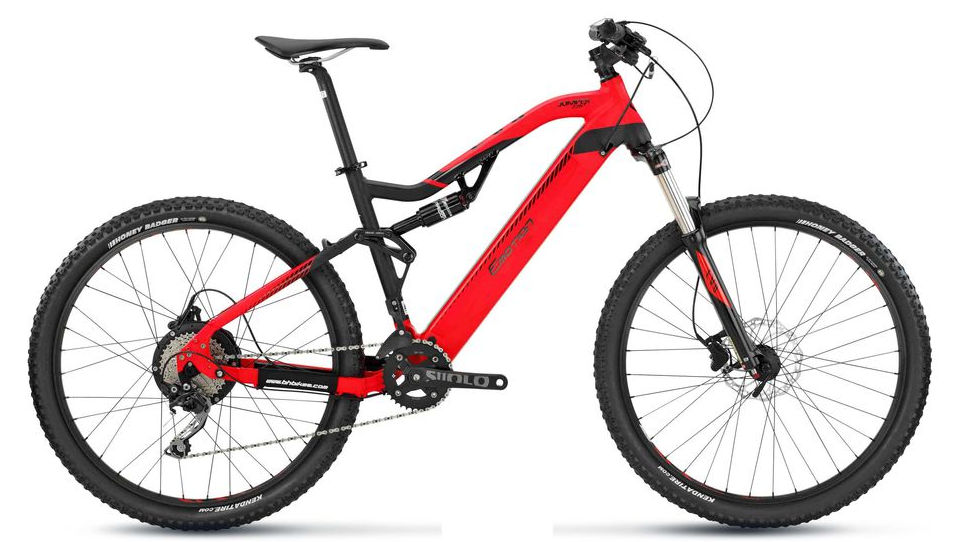

2018 BH EVO Jumper geometry
Full frame geometry for the 2018 BH EVO Jumper, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| L | 591 | 434 | 75 | 67 | 145 | 598 | 500 | 725 | 460 |
| M | 591 | 420 | 74.5 | 67 | 145 | 583 | 450 | 710 | 460 |
All measurements in millimetres unless marked (°) for angles.
