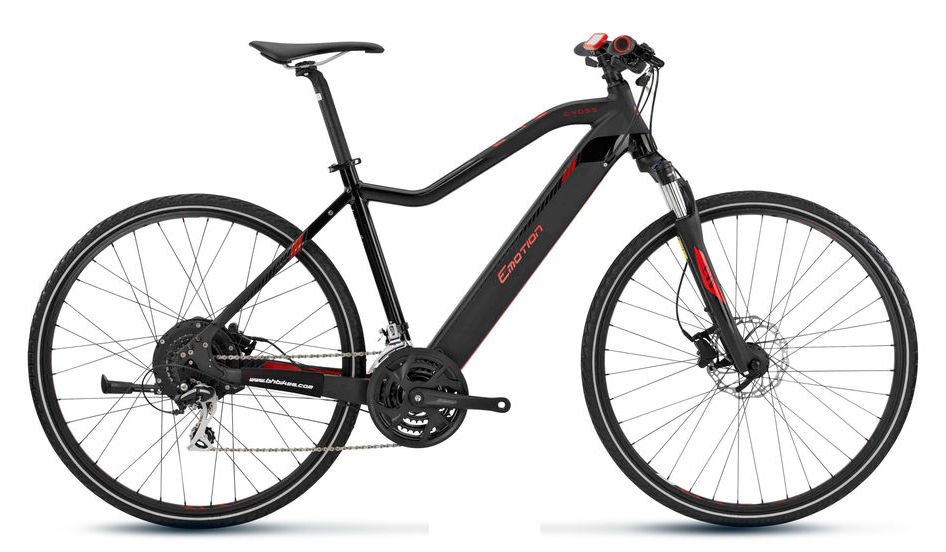

2018 BH EVO Cross geometry
Full frame geometry for the 2018 BH EVO Cross, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 616 | 416 | 74.5 | 68.5 | 140 | 586 | 450 | 680 | 465 |
| M | 628 | 417 | 73 | 69 | 150 | 609 | 500 | 680 | 465 |
| L | 636 | 423 | 73 | 69 | 160 | 618 | 550 | 690 | 465 |
All measurements in millimetres unless marked (°) for angles.
