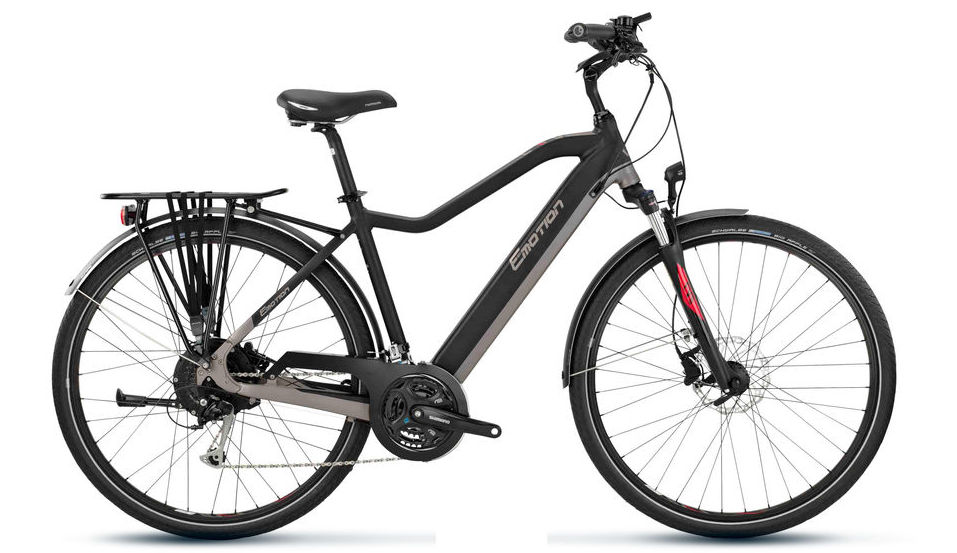

2018 BH EVO City Pro geometry
Full frame geometry for the 2018 BH EVO City Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 628 | 411 | 73 | 69 | 150 | 604 | 500 | 675 | 455 |
| L | 638 | 423 | 73 | 69 | 160 | 618 | 550 | 690 | 455 |
All measurements in millimetres unless marked (°) for angles.
