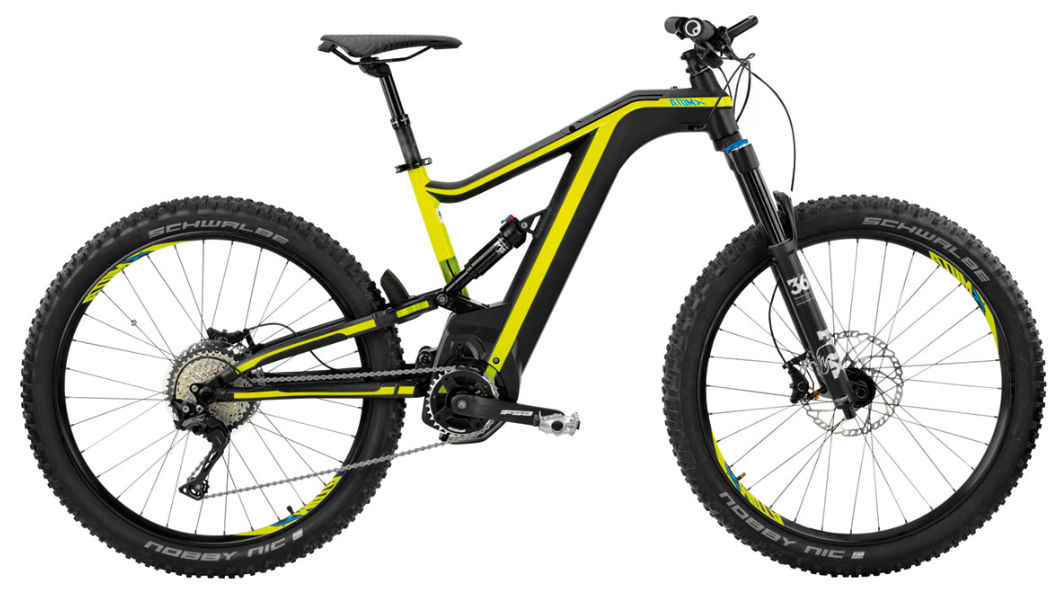

2018 BH Atom X Lynx 6 geometry
Full frame geometry for the 2018 BH Atom X Lynx 6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 608 | 424 | 75 | 67 | 115 | 592 | 450 | 465 | 1184 |
| L | 611 | 445 | 75 | 67 | 120 | 611 | 480 | 465 | 1211 |
| XL | 629 | 455 | 75 | 67 | 120 | 629 | 510 | 465 | 1223 |
All measurements in millimetres unless marked (°) for angles.
