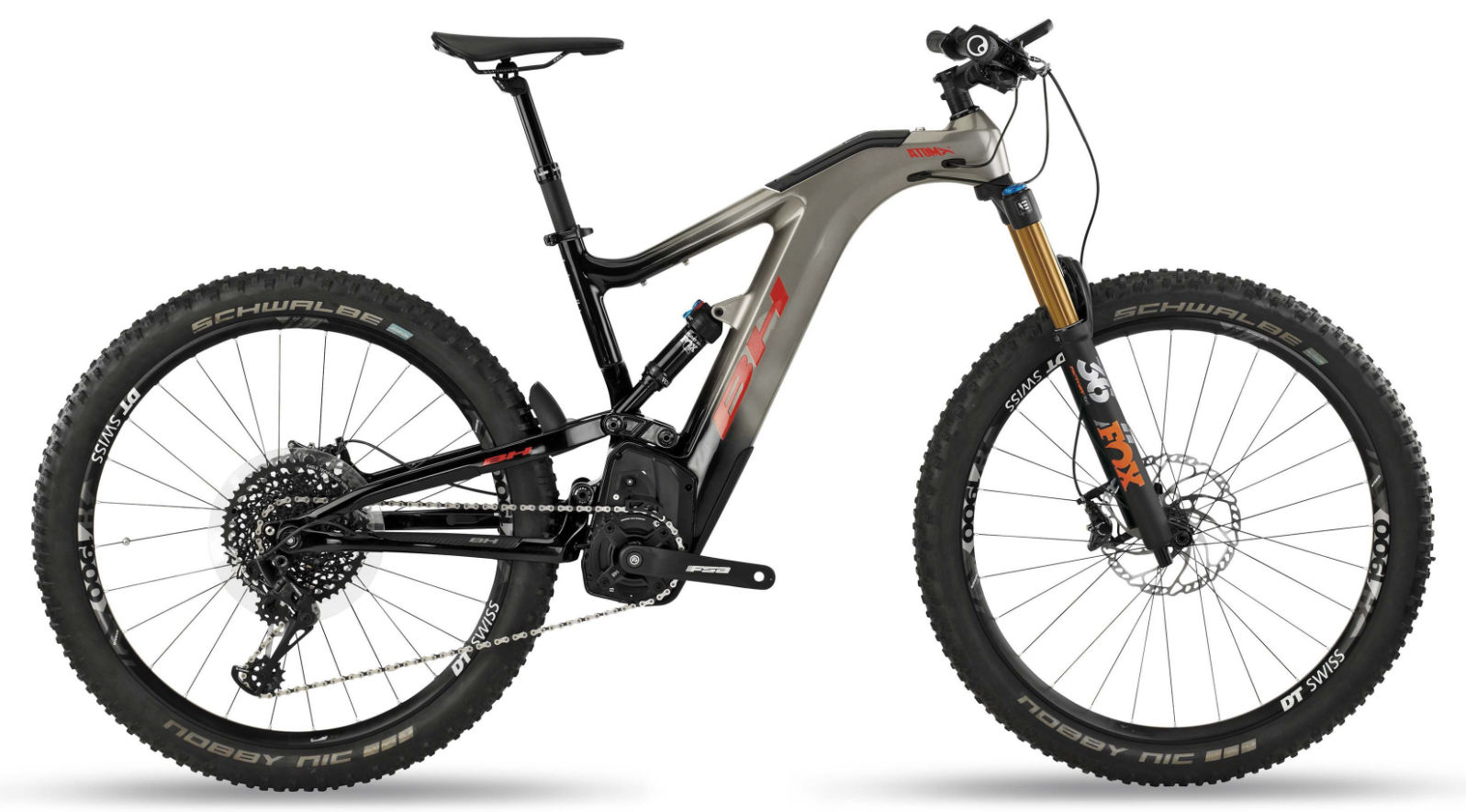

2019 BH Atom X Carbon Lynx 6 geometry
Full frame geometry for the 2019 BH Atom X Carbon Lynx 6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 607 | 441 | 74.5 | 66.5 | 95 | 609 | 450 | 461 | 1213 |
| L | 621 | 456 | 74.5 | 66.5 | 110 | 628 | 480 | 461 | 1234 |
| XL | 634 | 471 | 74.5 | 66.5 | 125 | 646 | 510 | 461 | 1255 |
All measurements in millimetres unless marked (°) for angles.
