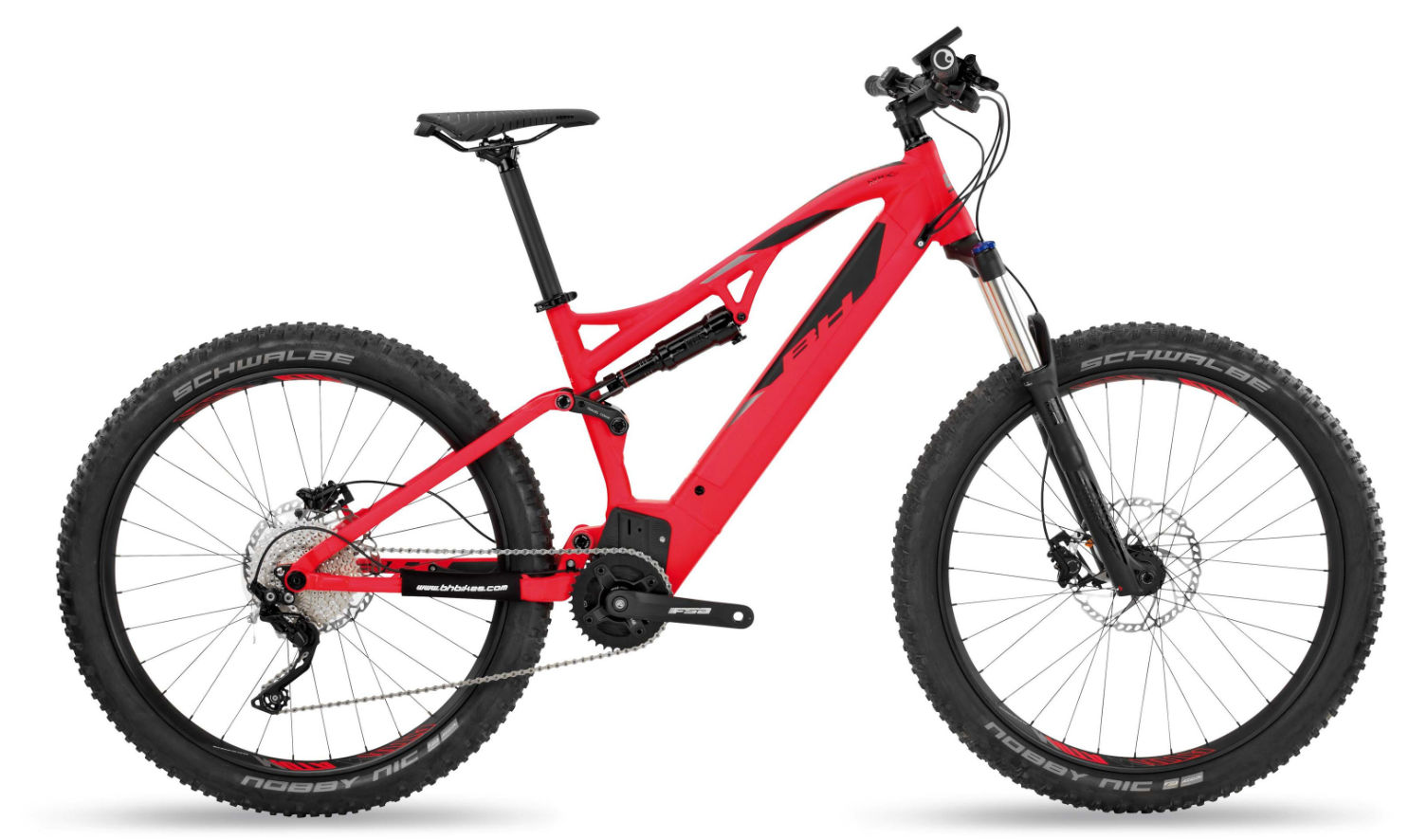

2018 BH Atom Lynx 5.5 geometry
Full frame geometry for the 2018 BH Atom Lynx 5.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| M | 648 | 430 | 75 | 67 | 145 | 608 | 440 | 460 |
| L | 653 | 450 | 75 | 67 | 150 | 630 | 480 | 460 |
All measurements in millimetres unless marked (°) for angles.
