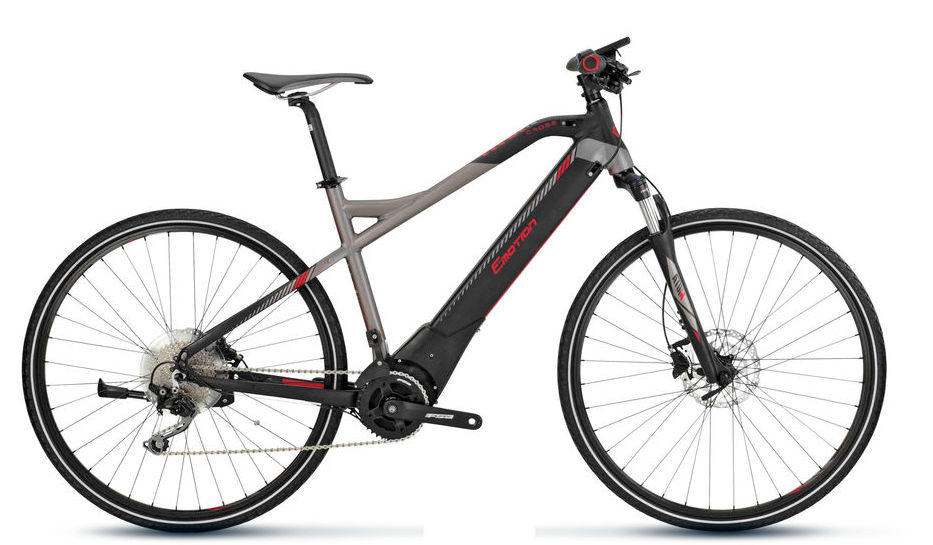

2018 BH Atom Cross geometry
Full frame geometry for the 2018 BH Atom Cross, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 625 | 420 | 74.5 | 68.5 | 140 | 587 | 450 | 690 | 455 |
| M | 637 | 433 | 74 | 69 | 150 | 610 | 500 | 700 | 455 |
| L | 645 | 438 | 73 | 69 | 160 | 629 | 550 | 710 | 455 |
All measurements in millimetres unless marked (°) for angles.
