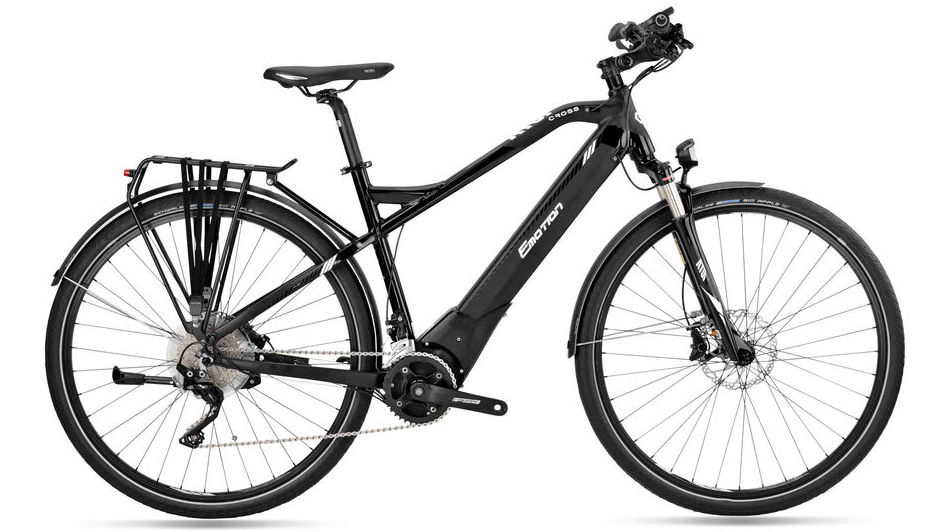

2018 BH Atom Cross Pro geometry
Full frame geometry for the 2018 BH Atom Cross Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 611 | 429 | 74.5 | 68 | 160 | 592 | 450 | 700 | 455 |
| M | 616 | 438 | 74 | 69 | 160 | 610 | 500 | 700 | 455 |
| L | 624 | 444 | 73 | 69 | 170 | 630 | 550 | 710 | 455 |
All measurements in millimetres unless marked (°) for angles.
