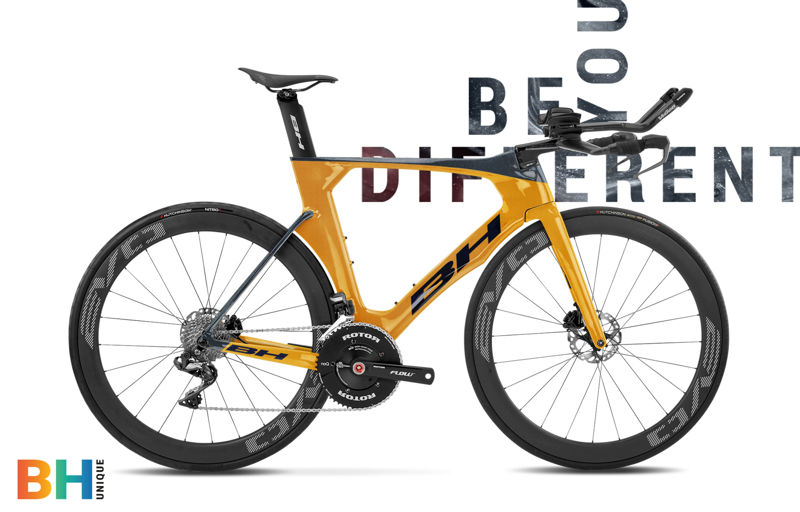

2022 BH Aerolight Disc geometry
Full frame geometry for the 2022 BH Aerolight Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) |
|---|---|---|---|---|---|---|
| SM | 493.6 | 408.6 | 76 | 72.5 | 85 | 531 |
| MD | 508.9 | 420.3 | 76 | 72.8 | 100 | 547 |
| LA | 528 | 431.1 | 76 | 72.8 | 120 | 562 |
| XL | 547.1 | 442.9 | 76 | 72.8 | 140 | 579 |
All measurements in millimetres unless marked (°) for angles.
