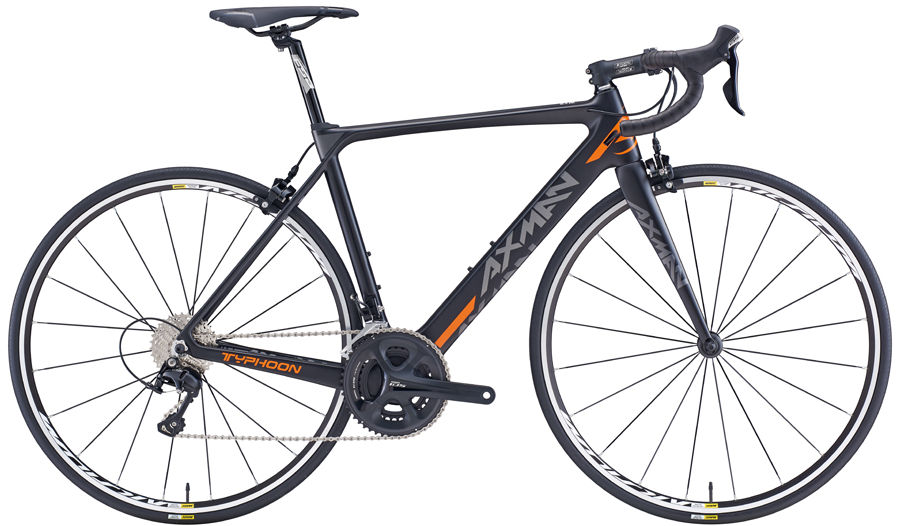

2016 Axman Typhoon S1 geometry
Full frame geometry for the 2016 Axman Typhoon S1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 498 | 386 | 74.5 | 72 | 100 | 525 | 464 | 738 | 65 | 575 | 405 | 971 |
| 54 | 525 | 389 | 74 | 72.5 | 125 | 540 | 485 | 760 | 65 | 582 | 405 | 978 |
| 55 | 541 | 395 | 73.5 | 73 | 140 | 555 | 495 | 770 | 65 | 588 | 405 | 984 |
| 57 | 562 | 398 | 73 | 73 | 162 | 570 | 512 | 787 | 65 | 597 | 405 | 993 |
| 58 | 575 | 409 | 73 | 73 | 175 | 585 | 524 | 799 | 65 | 612 | 405 | 1008 |
All measurements in millimetres unless marked (°) for angles.
